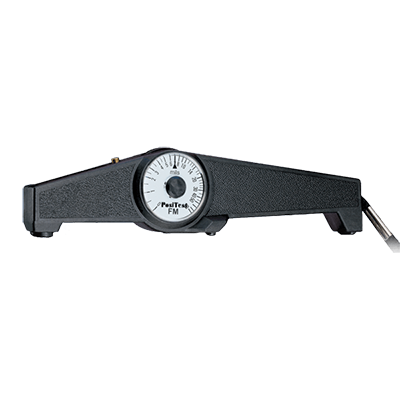

DEFELSKO PosiTest® Magnetic Coating Thickness Gages for Non-Magnetic Coatings on Steel

Product details：

PosiTest®

Magnetic Coating Thickness Gages for Non-Magnetic Coatings on Steel

PosiTest magnetic pull-off thickness gage (banana gauge) for the non-destructive measurement of non-magnetic coatings (paint, enamel, galvanizing, metalizing, plating, etc.) on steel.

Highly wear resistant Carbide Probe for longest life and continuous accuracy
Extra rugged housing, not affected by mechanical shock, water, acid or solvents
Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
Positive visual and audible indicators to designate when thickness reading is established
“V” grooves in probe housing and gage base allow correct positioning on cylindrical objects
Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D7091/B499, ISO 2808 and others

Features

Accurate

Certificate of Calibration showing traceability to PTB included with every gage
Matching Calibration Standards and Procedures available for every model
Highly wear resistant Carbide Probe for longest life and continuous accuracy
Remove center of dial cover for easy calibration adjustment
Conforms to national and international standards

Durable

Extra rugged housing, not affected by mechanical shock, water, acid or solvents
Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
Can be used fully supported or with only the front probe area contacting the surface
Functions on a permanent rare-earth cobalt magnet
No batteries/electronics
2 year warranty

Simple

Positive visual and audible indicators to designate when thickness reading is established
“V” grooves in probe housing and Gage base allow correct positioning on cylindrical objects
Compact, lightweight, precisely balanced, independent of gravity – can be used in any position
GO/NO-GO button can be pre-set for rapid measurement
Probe contact and dial rotation all in a one-finger operation
Furnished with wrist strap and instructions in a high quality leather case with belt loops for your convenience

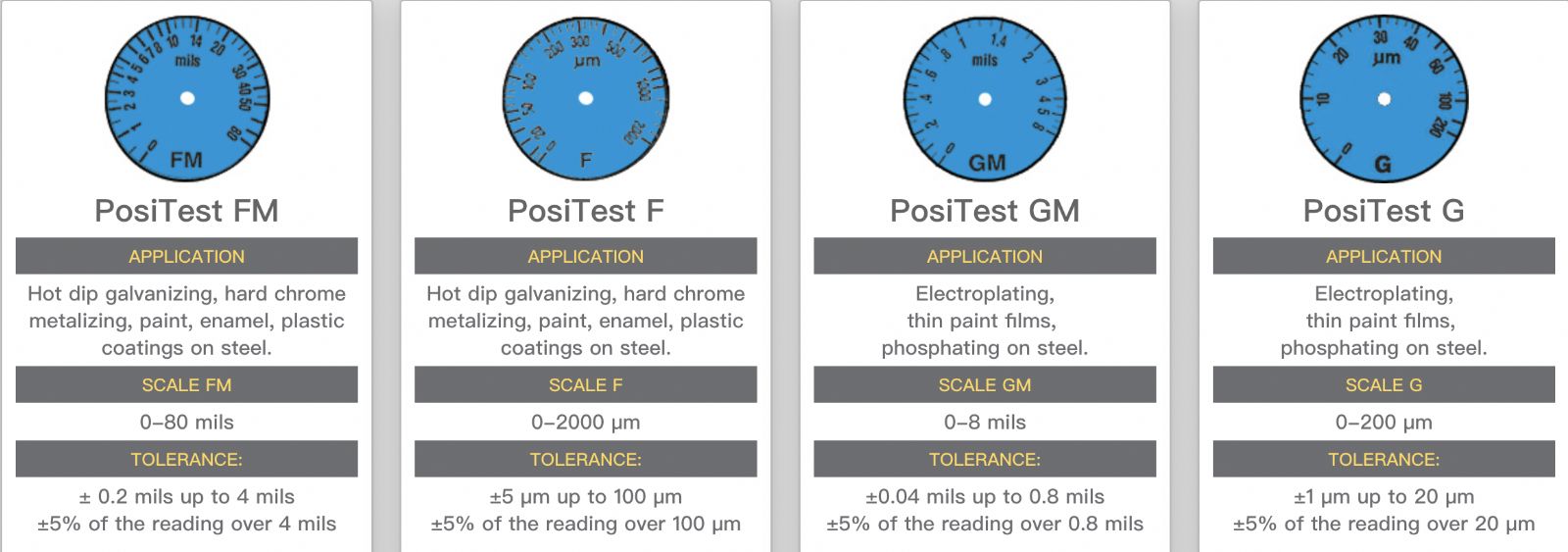

Models

Choose from four models:
