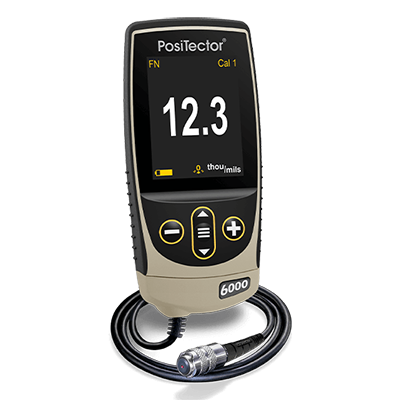

PosiTector® 6000

Coating Thickness Gages for ALL Metal Substrates

The rugged, fully electronic PosiTector 6000 Paint Thickness Gage uses magnetic and eddy current principles to measure paint thickness on both ferrous and non-ferrous metals, accurately and quickly.

Ready to measure—no calibration adjustment required for most applications
Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Wear resistant ruby probe tip, for long-lasting calibration
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2, US Navy NAVSEA PPI 63101-000, US Navy NAVSEA 009-32, AS 2331.1.4, AS3894.3-B, and others

Simple

Fast measurement speed—60+ readings per minute. Enhanced FAST mode—90+ readings per minute for quick inspection.
Ready to measure—no adjustment required for most applications
Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
Flashing display—ideal in a noisy environment
RESET feature instantly restores factory settings

Accurate

Certificate of Calibration showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to national and international standards including ISO and ASTM

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
Screen Capture—save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant-on feature quickly powers up the gage if recently powered down
Over 20 hours of continuous operation with 3 AAA batteries
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Every stored measurement is date and time stamped
Software Updates via web keep your gage current
Software Solutions for viewing, analyzing & reporting data

Durable

Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Versatile

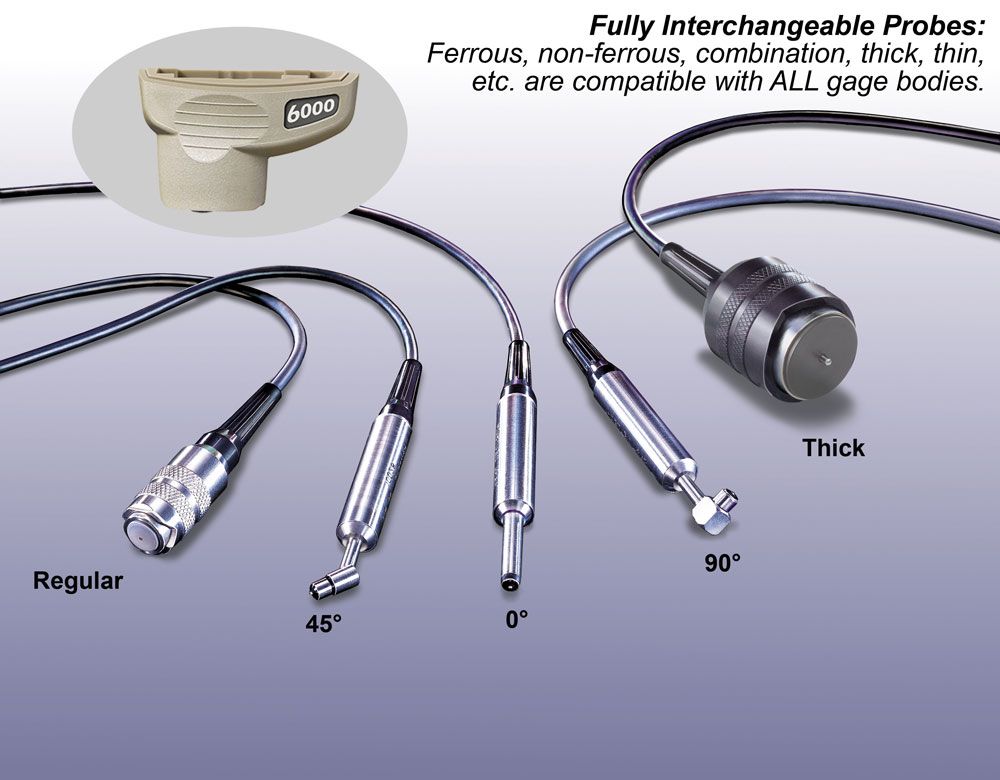

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
Selectable display languages
Auto rotating display with Flip Lock

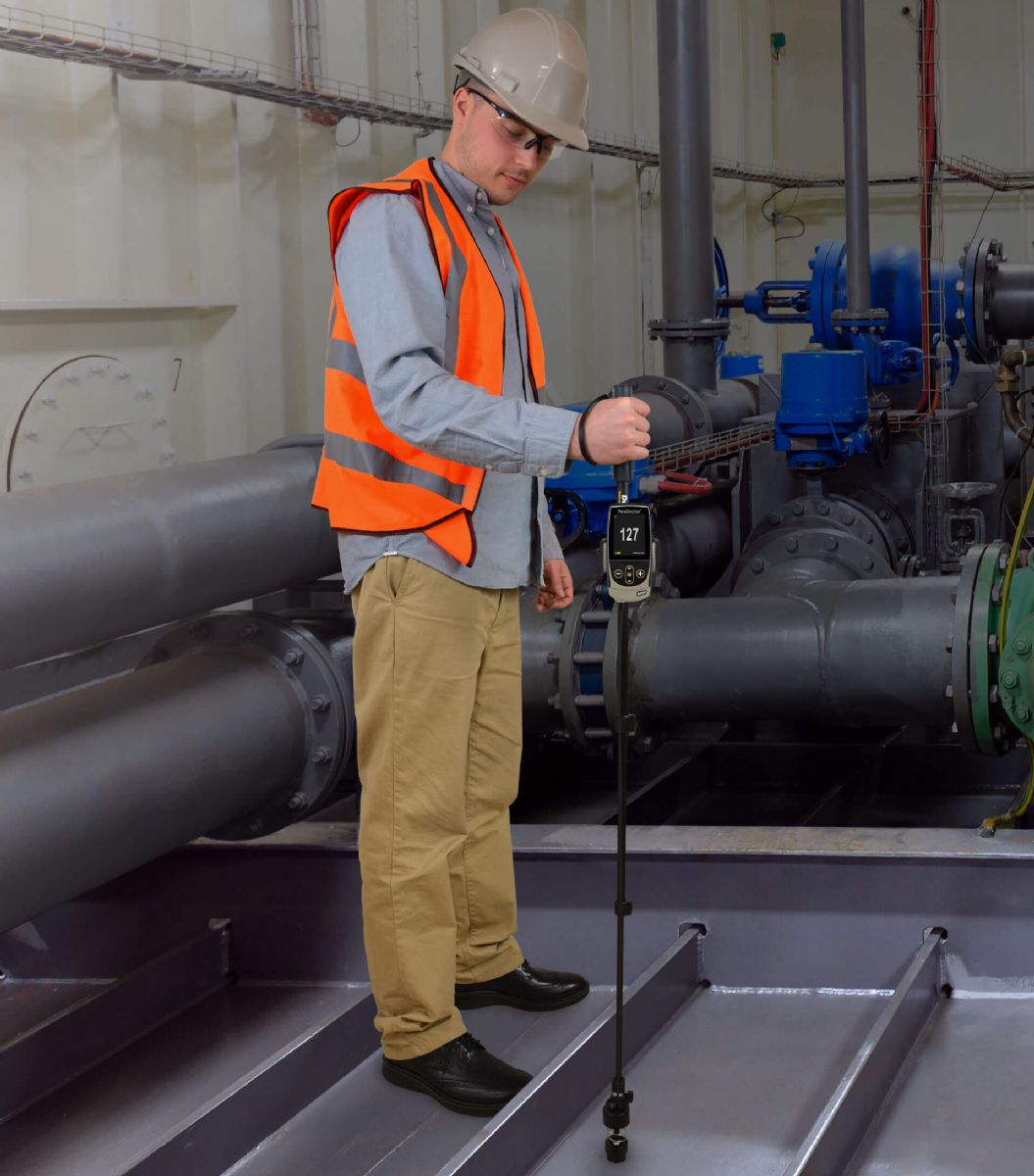

Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Mils/Microns/mm switchable

Models：

Step 1: Choose a gage body

standard	advanced
Includes all the above features, and storage of 1,000 readings per probe	Includes the features of the standard gage, with storage of 250,000 readings in up to 1,000 batches. Includes WiFi and Bluetooth.

Step 2: Choose material type

FERROUS	NON-FERROUS	COMBINATION
Steel, iron, and other magnetic metals	Aluminum, brass, copper, titanium, and other non- magnetic metals	Ferrous AND non-ferrous metals. ldeal for stainless steel.

Step 3: Select a model

MEASURING RANGE:

0 - 60 mils 0 - 1500 μm

ACCURACY

± (0.05 mils + 1%) 0 - 2 mils
± (0.1 mils + 1%) > 2 mils

± (1 μm + 1%) 0 - 50 μm
± (2 μm + 1%) > 50 μm

PRBFN

PRBFNS

PRBFNRS

PRBFNDS*
