HF-Spindle for high-speed milling, -grinding, -drilling, -engraving 10405047A
Product details：

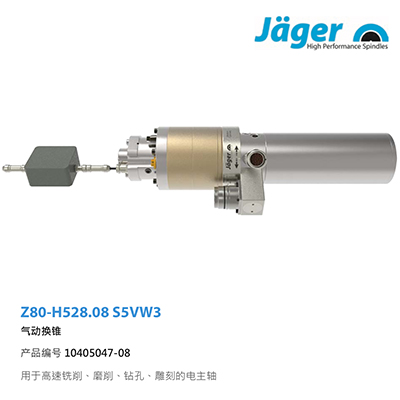

HF-Spindle for high-speed milling, -grinding, -drilling, -engraving
Z80-H536.08 S8JRVW3
Item no. 10405047A

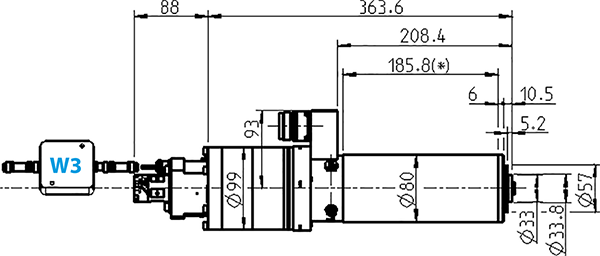

Technical Specifications
|
Hybrid ball bearing (pcs) |
4 |
|
Lifetime lubricated |
maintenance free |
|
Motor technology |
3-phase asynchronous drive
(no brushes or sensors) |
|
Frequency |
1200 Hz |
|
Motor poles (pairs) |
2 |
|
Rated Rotation Speed |
36,000 rpm |
|
Rated Power (Pmax/5s) |
6.9 kW |
|
Rated Power (S6-60%) |
5.2 kW |
|
Rated Power (S1-100%) |
4.7 kW |
|
Voltage (Pmax/5s) |
351 V |
|
Voltage (S6-60%) |
354 V |
|
Voltage (S1-100%) |
366 V |
|
Current (Pmax/5s) |
16 A |
|
Current (S6-60%) |
11 A |
|
Current (S1-100%) |
10 A |
|
Speed Sensor |
Vector control |
|
Motor protection |
PTC 160°C |
|
Housing |
Stainless steel |
|
Housing diameter |
80 mm |
|
Cooling |
Liquid cooled |
|
Ambient temperature |
+ 10°C … + 45°C |
|
Sealing Air |
yes |
|
Protection category |
IP54 |
|
Taper Cleaning |
yes |
|
Eddy Current Sensor |
ja;X = Micro Epsilon |
|
Internal coolant supply |
ja |
|
Tool Change |
Pneumatic taper change |
|
Tool Holder |
HSK-E 32 |
|
Clamping status monitoring |
inductive |
|
Clamping range |
13 mm |
|
Direction of motion |
Clockwise and anticlockwise |
|
Coupler plug |
18-pin metal(motor phases)
17-pin metal(sensors)
5-pin metal(sensors) |
|
Weight |
12 kg |
|
Concentricity |
<1 µ |
|
Axial run-out |
<1 µ |
|
Machine
