HF-Spindle for high-speed milling, -grinding, -drilling, -engraving Chopper 5000 HSK S5 11505001
Product details：
HF-Spindle for high-speed milling, -grinding, -drilling, -engraving Chopper 5000 HSK S5
11505001
Technical Specifications
|
Steel ball bearing (pcs) |
3 |
|
Lifetime lubricated |
maintenance free |
|
Frequency |
500 Hz |
|
Motor poles (pairs) |
1 |
|
Rated Rotation Speed |
30,000 rpm |
|

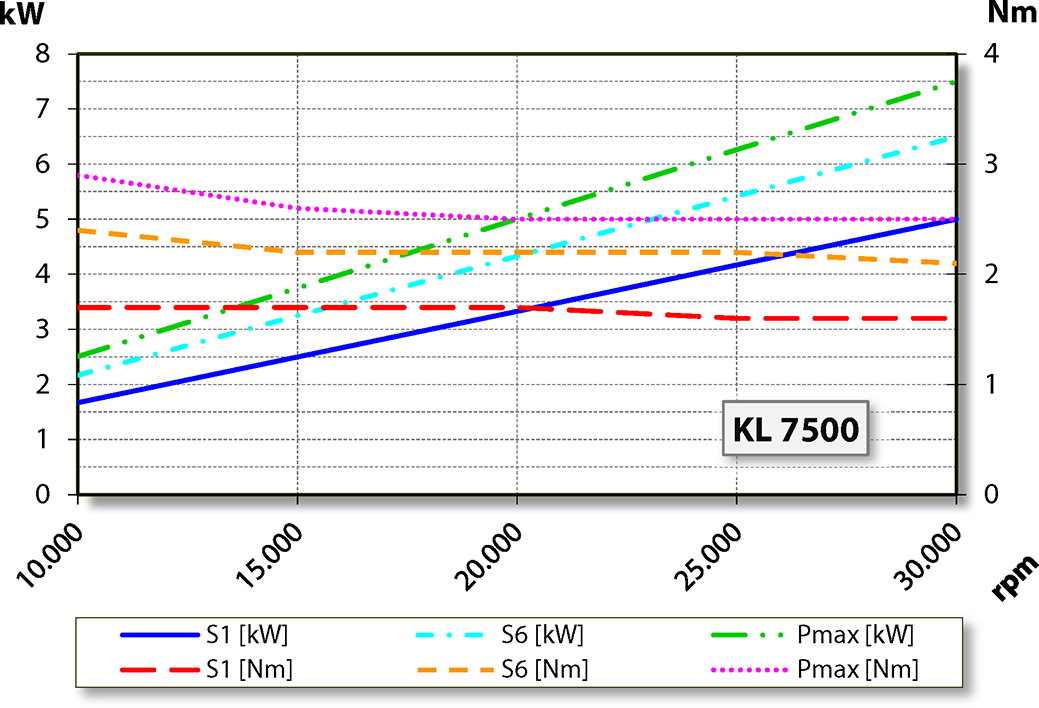

Rated Power (Pmax/5s) |
7.5 kW |
|
Rated Power (S6-60%) |
6.5 kW |
|
Rated Power (S1-100%) |
5 kW |
|
Voltage (Pmax/5s) |
380 V |
|
Voltage (S6-60%) |
380 V |
|
Voltage (S1-100%) |
380 V |
|
Current (Pmax/5s) |
19 A |
|
Current (S6-60%) |
14.5 A |
|
Current (S1-100%) |
10.3 A |
|
Speed Sensor |
Differential magneto resistor (TTL)
Number of signals = 6 |
|
Motor protection |
PTC 130°C |
|
Housing |
Aluminium |
|

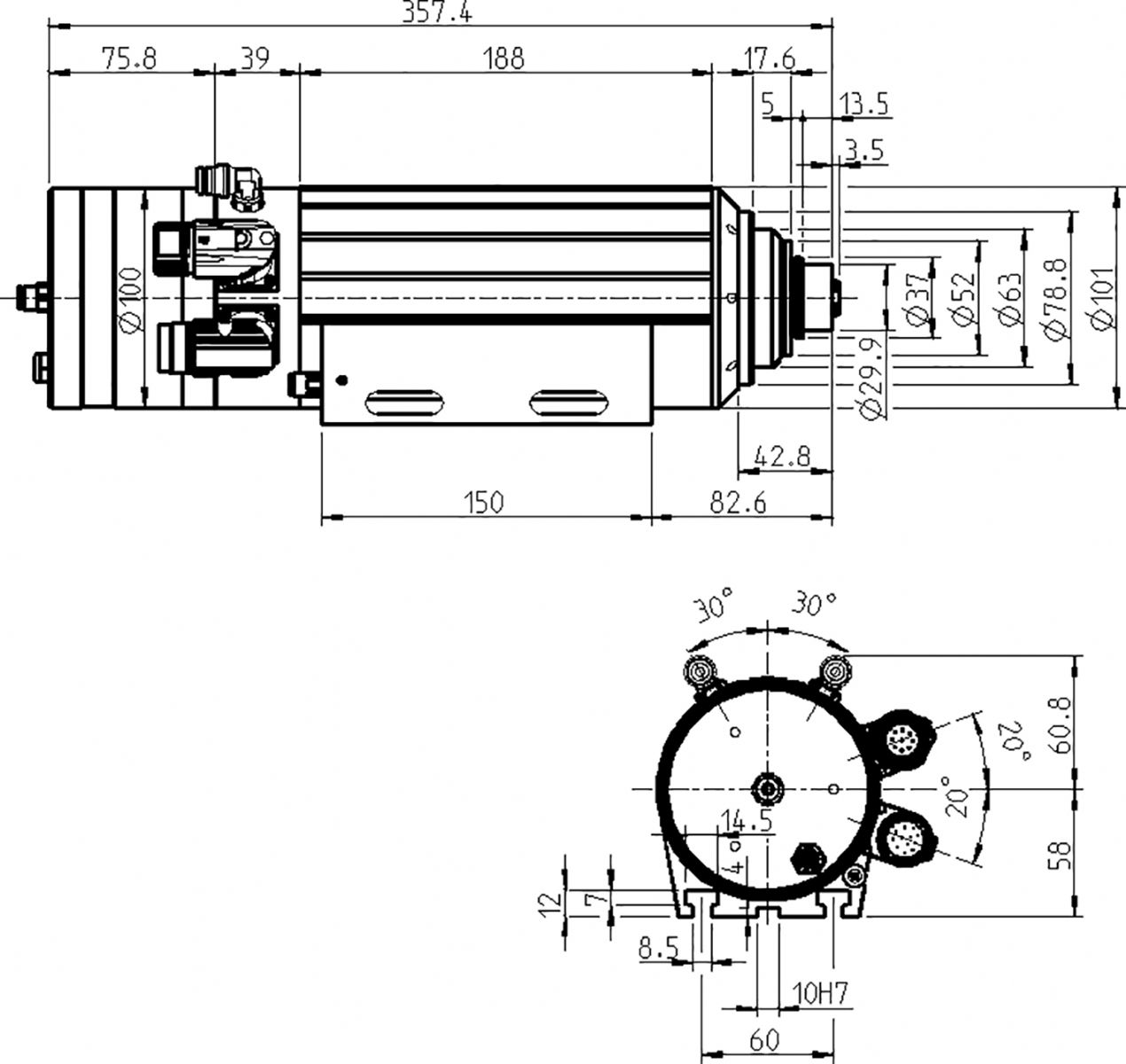

Housing diameter |
100 mm |
|
Cooling |
Liquid cooled |
|
Ambient temperature |
+ 10°C … + 45°C |
|
Sealing Air |
yes |
|
Protection category |
IP54 |
|
Taper Cleaning |
yes |
|
Tool Change |
Pneumatic taper change |
|
Tool Holder |
HSK-E 32 |
|
Clamping status monitoring |
inductive |
|
Clamping range |
13 mm |
|
Direction of motion |
Clockwise and anticlockwise |
|
Coupler plug |
9-pin (SpeedTEC)
(motor phases)
12-pin
(sensors) |
|
Weight |
9.4 kg |
|
Concentricity |
<2 µ |
|
Axial run-out |
<2 µ |

|
