HF-Spindle for high-speed milling, -grinding, -drilling, -engraving Chopper 3300 H S5 11205005
Product details：
HF-Spindle for high-speed milling, -grinding, -drilling, -engraving
Chopper 3300 H S5
11205005

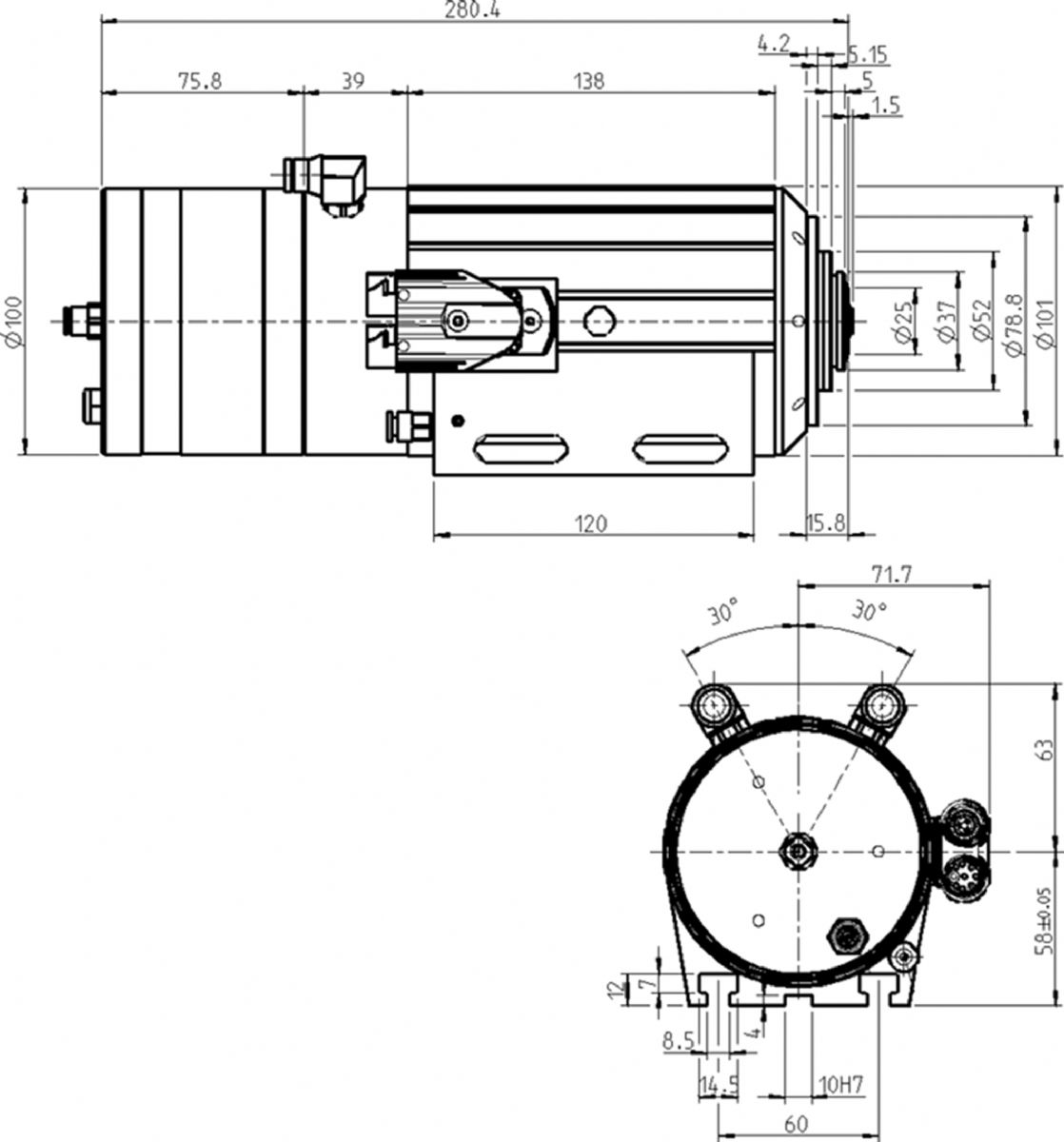

Technical Specifications
Hybrid ball bearing (pcs)
|
3 |
|
Lifetime lubricated |
maintenance free |
|
Frequency |
500 Hz |
|
Motor poles (pairs) |
1 |
|
Rated Rotation Speed |
30,000 rpm |
|
Rated Power (Pmax/5s) |
7.5 kW |
|
Rated Power (S6-60%) |
4.5 kW |
|
Rated Power (S1-100%) |
3.3 kW |
|
Voltage (Pmax/5s) |
380 V |
|
Voltage (S6-60%) |
380 V |
|
Voltage (S1-100%) |
380 V |
|
Current (Pmax/5s) |
19 A |
|
Current (S6-60%) |
9.1 A |
|
Current (S1-100%) |
6.8 A |
|
Motor protection |
PTC 130°C |
|
Housing |
Aluminium |
|
Housing diameter |
100 mm |
|
Cooling |
Fan-cooled
(impeller on shaft) |
|
Heat dissipation |
Via the housing |
|
Housing temperature |
<+ 55° C |
|
Sealing Air |
yes |
|
Protection category |
IP54 |
|
Tool Change |
Manual tool change |
|
Collet type |
ER 25
Optional accessories |
|
Clamping range |
16 mm ( 5/8" ) |
|
Direction of motion |
Clockwise |
|
Coupler plug |
9-pin (SpeedTEC) |
|
Weight |
7.4 kg |
|
Concentricity |
<2 µ |
|
