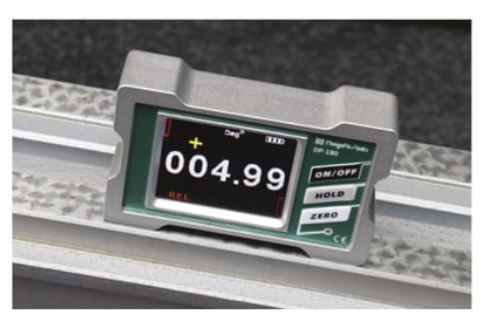

DP-180 DIGITAL PROTRACTOR
Compact digital inclinometer with a wide measuring range.
Data output by connecting with the included USB cable.
USE
For inclination measurement
MATERIAL
Body: Aluminum
FEATURES
Zero setting at desired position
Absolute measurement mode that can store the origin
Display hold function
With magnets on measuring surface (bottom & left)
SPECIFICATIONS
|
Measuring Range |
土180° |
|
Minimum Reading |
0.01° |
|
Operating Temperature |
0~ 40°C |
|
Reading Accuracy |
土0.05° （when at 20°C） |
|
Repeatability |
土0.03° |
|
Accessories |
USB cable ●AC adapter(for charging.AC100V~ 240V)
Warranty. Instruction manual . Inspection report |
|
Display Unit |
DEG |
|
Power Source |
Litium-ion battery |
|
Run Time (Continuous use) |
Approx.6hrs.
※ Depending on measurement condition |
|
Dimensions |
L83 xW20xH53mm |
|
Weight |
125g |
