产品详细介绍：

台湾Sigma Top竑源精机精密内圆磨床 SRI-150 /Sigma Top CNC Internal Grinder SRI-150

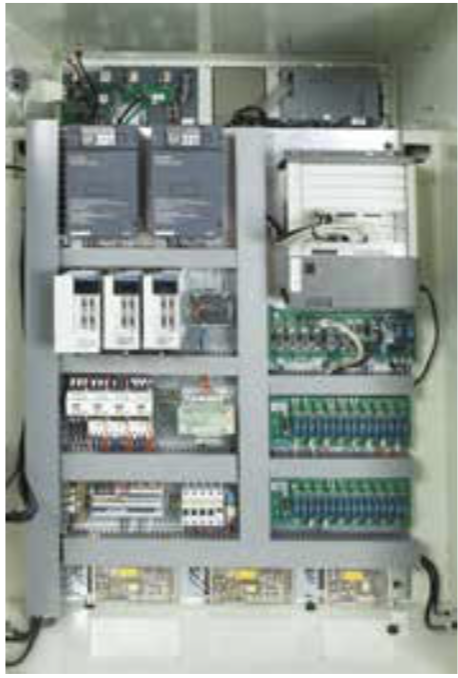

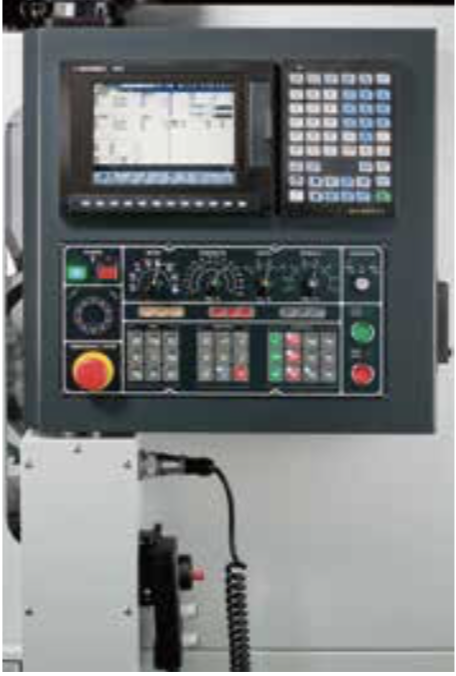

电控系统符合欧规 Control System Meets European Standards 电控系统完全探用高级电气元件组成，并且符合欧洲安全特性。 电控箱内部具防麈，防水特性。 电气系统具自我侦测功能，并附有警示灯指示。 The control system consists of top quality electronic      components which comply with European safety requirements.      The interior of the control cabinet is dust-proof and fluid-proof The control system has a self_diagnostic function and warning Light indicating machine status	本机配备最先进的CNC控制器，附教导式画面。易学易操控。      自动以图形对话产生加工程式。可大幅降低准备前置时间，提 升加工效率。 The machine is equipped with the latest CNC control with      teach-in programming function and it is easy to operate. Machining programs are automatically generated through      graphic dialog. This greatly saves on preparation time While increasing efficiency.

直结传动搭配精密铲花滑道
Direct Transmission System with Fine-Scrapped Slideways

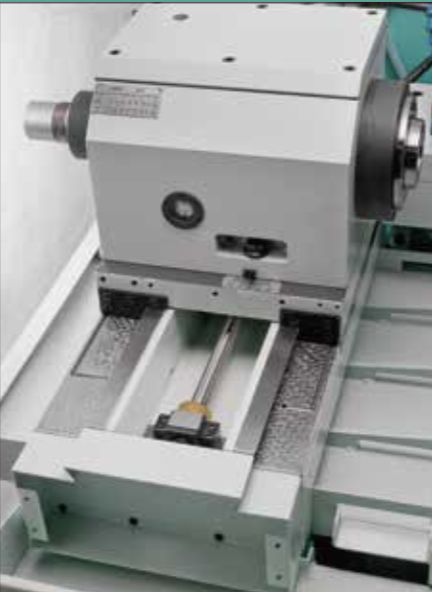

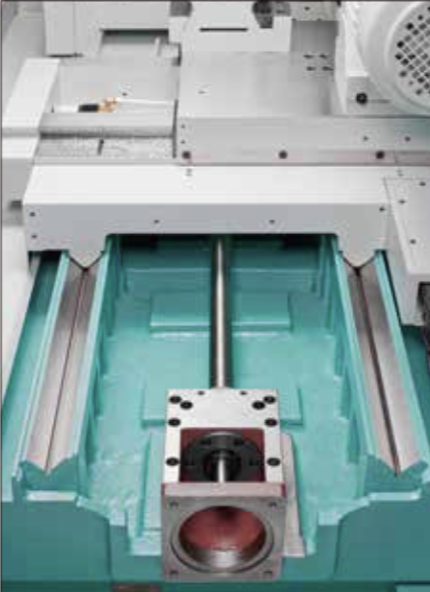

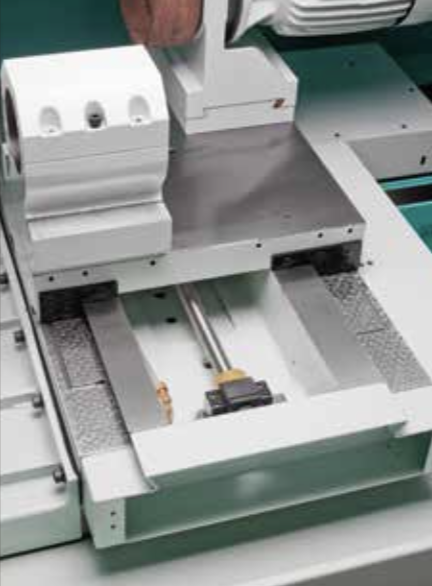

X滑道  X-axis Slideways X轴滑道为鸠尾槽滑道，经精密铲花处理。 X轴探用伺服马达驱动，配合精密滚珠螺悍 传动，定位精度。 The X-axis moves on dovetail slideways With precision scraping. The X-axis is driven by a servo motor and Transmitted through a precision ball screw For high positioning accuracy.	Y轴滑道  Y-axis Slideways Y轴滑道为鸠尾槽滑道，经精密铲花处理。      Y轴采用伺服马达直接驱动滚珠螺杆，动作 快速顺畅，定位精准。 The Y-axis moves on dovetail slideways with precision scraping. The Y-axis employs a servo motor, which Directly drives a ball screw for smooth movement and high positioning accuracy.	Z轴滑道  Z-axis Slideways Z轴滑道为双”V”型滑道，配合大跨距设计， 稳定性优异。 Z轴采用伺服马达直接驱动滚珠螺悍。 The Z-axis moves on double “V” slideways In combination with a large span between them, exhibiting outstanding stability. The Z-axis employs a servo motor, which Directly drives the ball screw.
