ZS80-H445.106 S19W2/2

Item no. 13404066-01

Technical Specifications

Hybrid ball bearing (pcs)	3
Lifetime lubricated	maintenance free
Motor technology	3-phase synchronous drive (no brushes or sensors)
Frequency	1500 Hz
Motor poles (pairs)	2
Rated Rotation Speed	45,000 rpm
Rated Power (Pmax/5s)	6.6 kW
Rated Power (S6-60%)	5 kW
Rated Power (S1-100%)	3.8 kW
Voltage (Pmax/5s)	311.2 V
Voltage (S6-60%)	275 V
Voltage (S1-100%)	291 V
Current (Pmax/5s)	15.36 A
Current (S6-60%)	12.6 A
Current (S1-100%)	9.5 A
Speed Sensor	Differential magneto resistor (TTL) Number of signals = 6
Motor protection	Pt1000
Housing	Stainless steel

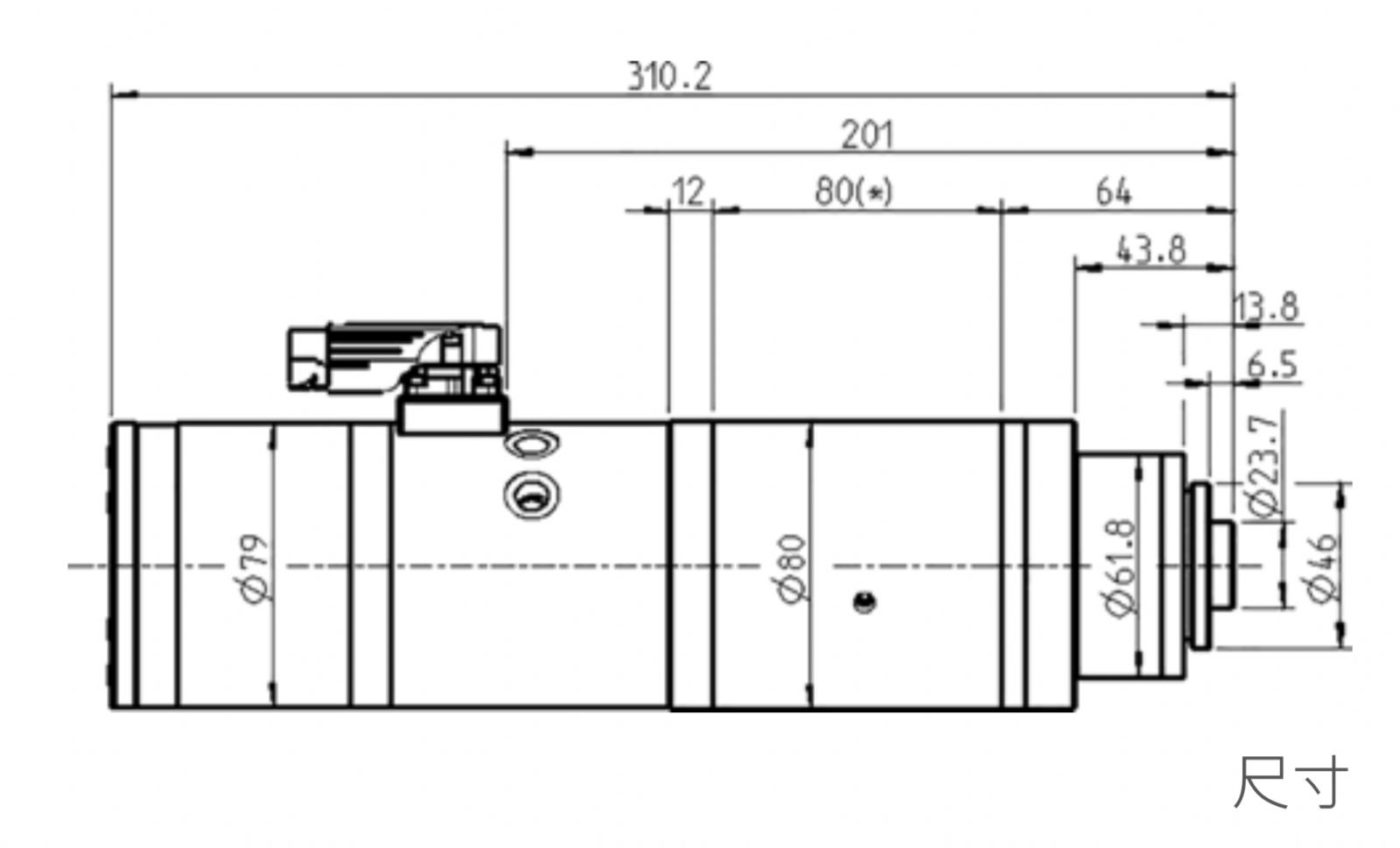

Housing diameter	80 / 62 mm
Cooling	Liquid cooled
Ambient temperature	+ 10°C … + 45°C
Sealing Air	yes
Protection category	IP54
Taper Cleaning	yes
Tool Change	Pneumatic taper change
Tool Holder	HSK-E 25
Clamping status monitoring	inductive
Clamping range	10 mm
Direction of motion	Clockwise and anticlockwise
Coupler plug	Y-TEC 9-pin(motor phases) 12-pin(sensors)
Weight	7 kg
Concentricity	<1 µ
Axial run-out	<1 µ
