HF-Spindle for high-speed milling, -grinding, -drilling, -engraving Chopper 6500 SK30 11607001-01
Product details：
HF-Spindle for high-speed milling, -grinding, -drilling, -engraving
Chopper 6500 SK30
11607001-01
Technical Specifications
|
Hybrid ball bearing (pcs) |
4 |
|
Lifetime lubricated |
maintenance free |
|
Frequency |
800 Hz |
|
Motor poles (pairs) |
2 |
|

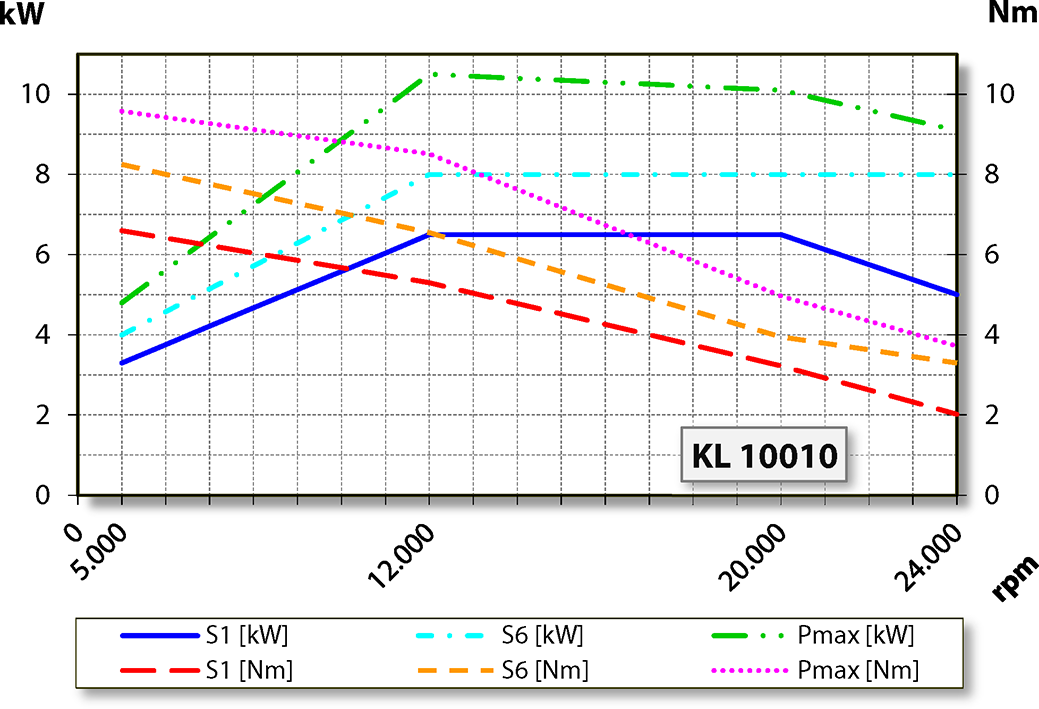

Rated Rotation Speed |
24,000 rpm |
|
Rated Power (Pmax/5s) |
10.5 kW |
|
Rated Power (S6-60%) |
8 kW |
|
Rated Power (S1-100%) |
6.5 kW |
|
Voltage (Pmax/5s) |
363 V |
|
Voltage (S6-60%) |
347 V |
|
Voltage (S1-100%) |
330 V |
|
Current (Pmax/5s) |
22 A |
|
Current (S6-60%) |
20 A |
|
Current (S1-100%) |
13 A |
|
Speed Sensor |
Differential magneto resistor (TTL)
Number of signals = 6 |
|
Motor protection |
PTC 130°C |
|
Housing |
Aluminium |
|

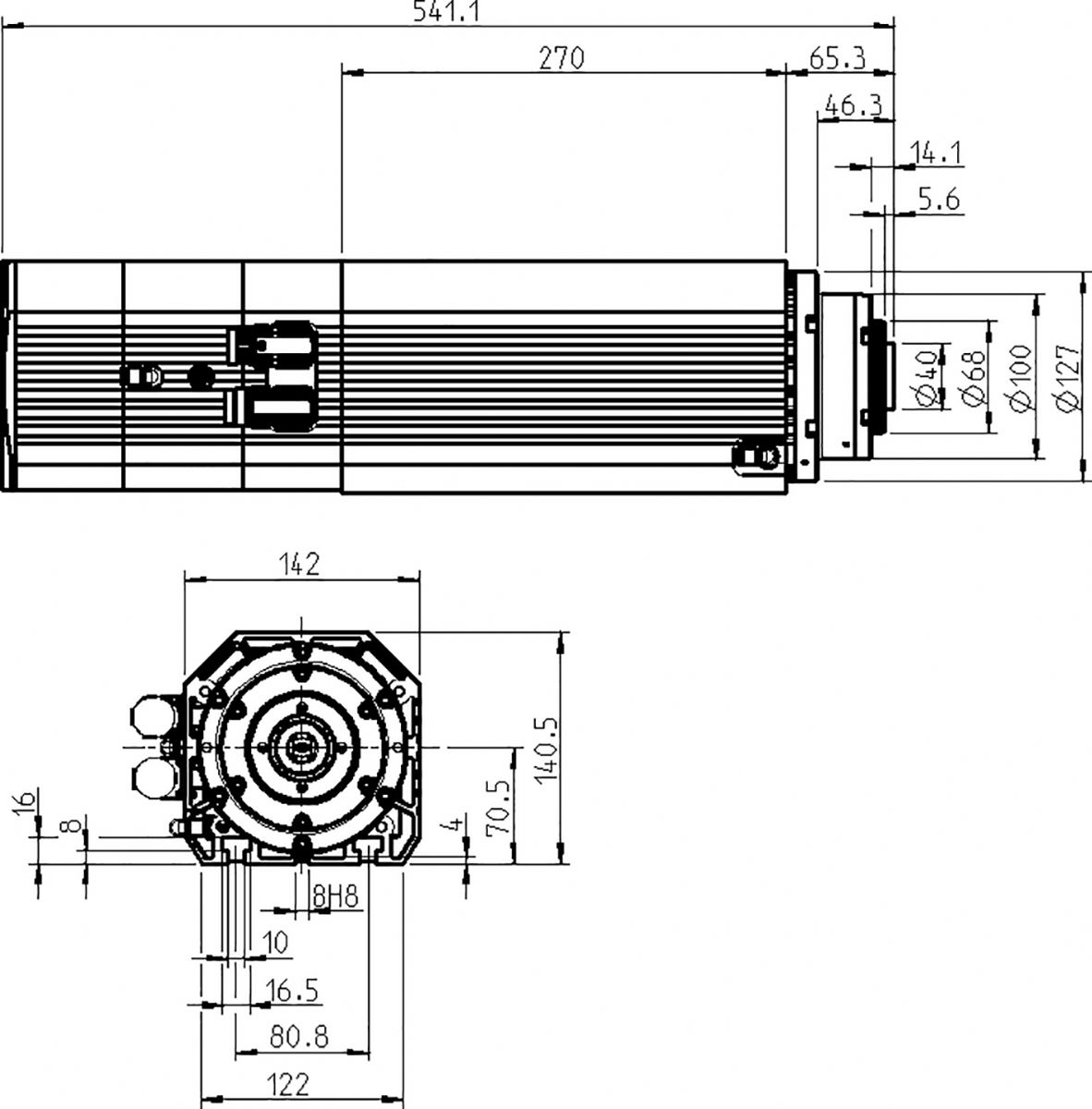

Housing diameter |
142 mm |
|
Cooling |
Fan-cooled
(1 electric fan) |
|
Heat dissipation |
Via the housing |
|
Housing temperature |
<+ 75°C |
|
Ambient temperature |
+ 10°C … + 45°C |
|
Sealing Air |
yes |
|
Protection category |
IP54 |
|
Taper Cleaning |
yes |
|
Tool Change |
Pneumatic taper change |
|
Tool Holder |
SK 30 |
|
Clamping status monitoring |
inductive |
|
Direction of motion |
Clockwise and anticlockwise |
|
Coupler plug |
9-pin (SpeedTEC)
(motor phases)
12-pin
(sensors) |
|
Weight |
27 kg |
|
