Model KMDE STATIONARY DEMAGNETIZER

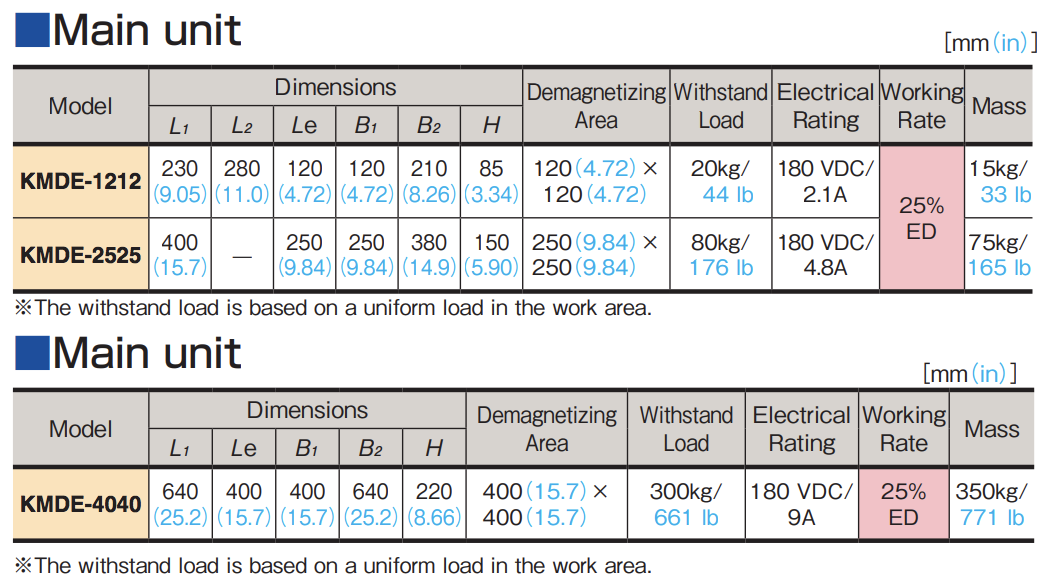

KMDE-1212、KMDE-2525､KMDE-4040
[Application]
Used to eliminate residual magnetism in magnetized workpieces and tools. Pressing the demagnetizing button can complete demagnetization within a certain time without moving workpieces.
[Features]
A magnetomotive force greater than the AC demagnetizer has been set, which works well on hard workpieces such as
bearing steel and cutter steel that are difficult to demagnetize with conventional demagnetizers.
Since workpieces are demagnetized while they are kept stationary on the demagnetizer, it is not necessary to move
workpieces, press die materials, SK materials, etc. as when using an AC demagnetizer. Thus, this model is suitable for
demagnetization of large workpieces (e.g. molds) that are difficult to move.
Since demagnetization is carried out according to the attenuation pattern programmed in the control unit, electricity
needs to be applied only during demagnetization, thus saving electricity.

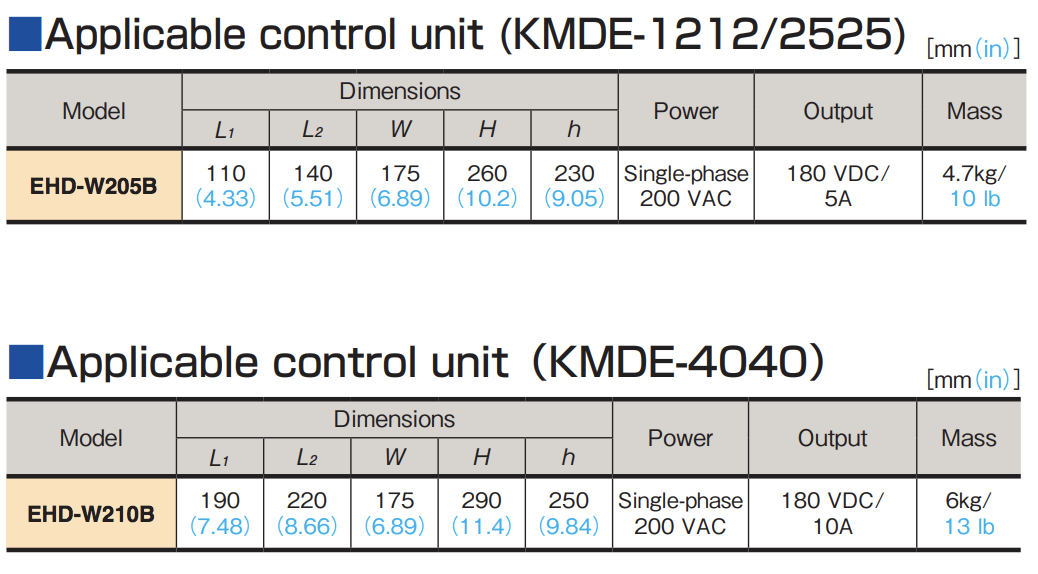

The demagnetizer itself and the control unit are installed separately. Thus, they can be installed in an easy-to-operate
place.
