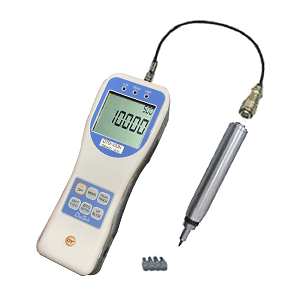

Portable Torque Gauge DTR-200N / DTR-500N / DTR-1000N
Product details：
Portable Torque GaugeDTR-200N / DTR-500N / DTR-1000N
-
Screw of tightening, back, you can torque measurement of such destruction.
-
Turn right replace the tip of the jig, it can be measured in the left turning.
-
± NG, OK decision function, it has all of the features of other digital gauge.
-
USB output cable and AC100V ~ 240V corresponding multi AC Adabuta has become a standard accessory.
DTR series specification
|
Capacity |
※DTR-200N 2000mNm（20kgfcm）
※DTR-500N 5Nm（5kgfcm）
※DTR-1000N 10Nm（100kgfcm） |
|
Resolution |
1mNm（0.01kgfcm） |
|
Measuring unit |
N-m、kgf-cm、lb-in |
|
accuracy |
±0.5％ f.s |
|
weight |
approx. 700g （a sensor part is included） |
|
Accessory |
4pcs screw driver bits |
|
