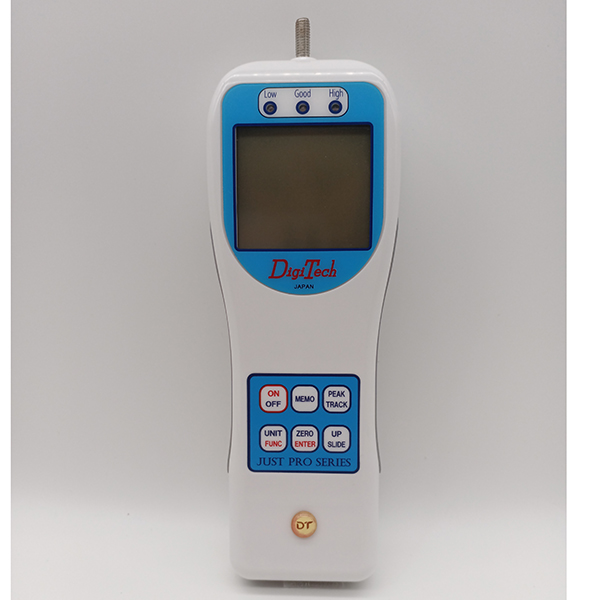

Force gauge equipped with a displacement display and displacement control function
MANY FUNCTIONS! SIMPLE OPERATION!
-
Easy-to read,auto-reverse large LCD display.
-
Auto power OFF function.
-
Memory up to 1000 data of peak and hold values.
-
Print out measuring data with connection to printer.(Serial output)
-
connectable to computer through USB output cable(standard accessory）
-
Automatic peak measuring value record(Auto-memory function)
-
By setting control value of load and displacement it is possible for control the instruments.
-
Overload warning.(LED flash and sound alarm)
-
Battery remain display.
-
Display reverse function.
-
Present values of ON,OFF points. (by connection with points of switch and connectors etc.)
-
It can be charged from the USB terminal of the PC as well as the AC adapter..
DTG series specification
|
Measuring shaft |
M6 |
|
Measuring accuracy |
±0.2％ f.s |
|
Measuring unit |
N, kgf(gf), lb |
|
Measuring cycle |
1ms, 5ms, 16ms, 50ms (selectable) |
|
Display renewal cycle |
1, 2, 5, 10, 20times /sec (selectable) |
|
Communication method |
USB-C |
|
Memory |
1000 data |
|
External input |
Mitutoyo digimatic input, pulse input.（displacement meter）point ON,OFF load detection input. |
|
Printer output |
Serial output. |
|
Output for test stand |
Load setting /displacement setting method UP,DOWN,STOP output.overload output(open collector output) |
|
Analog output |
±2V / f.s（load value only） |
|
Tolerance judgment output |
LOW・GOOD・HIGH LED lighting and output.（open collector output） |
|
Display |
H45mm×W50mm LCD. Load: 6digit, Displacement: 7digit. Battery remain quantity. |
|
Dimension |
H220mm×W74mm×D37mm |
|
Weight |
approx. 500g |
|
Operationtemperrature |
0℃～＋40℃ |
|
Power source |
Ni-MH battery. AC100～240V multi AC adapter. USB-C |
|
Standard accessory |
6pcs jig. A multi AC adapter.USB cable.Carrying case.Operation manual.Test Certificate |
※Specifications are subject to change without notice.
DTG series Another model list
|
Model |
DTG-10N |
DTG-20N |
DTG-50N |
DTG-100N |
|
Capacity |
10N
（1kgf） |
20N
（2kgf） |
50N
（5kgf） |
100N
（10kgf） |
|
Resolution |
0.001N
（0.1gf） |
0.01N
（1gf） |
0.01N
（1gf） |
0.01N
（1gf） |
|
Model |
DTG-200N |
DTG-500N |
DTG-1000N |
|
Capacity |
200N
（20kgf） |
500N
（50kgf） |
1000N
（100kgf） |
|
Resolution |
0.1N
（10gf） |
0.1N
（10gf） |
0.1N
（10gf） |
【FREE SOFT WARE】
※Data capture free software to Excel can be downloaded
from here.
