KPB DOUBLE-FACE HOLDING PERMANENT MAGNETIC BLOCK
［Application］

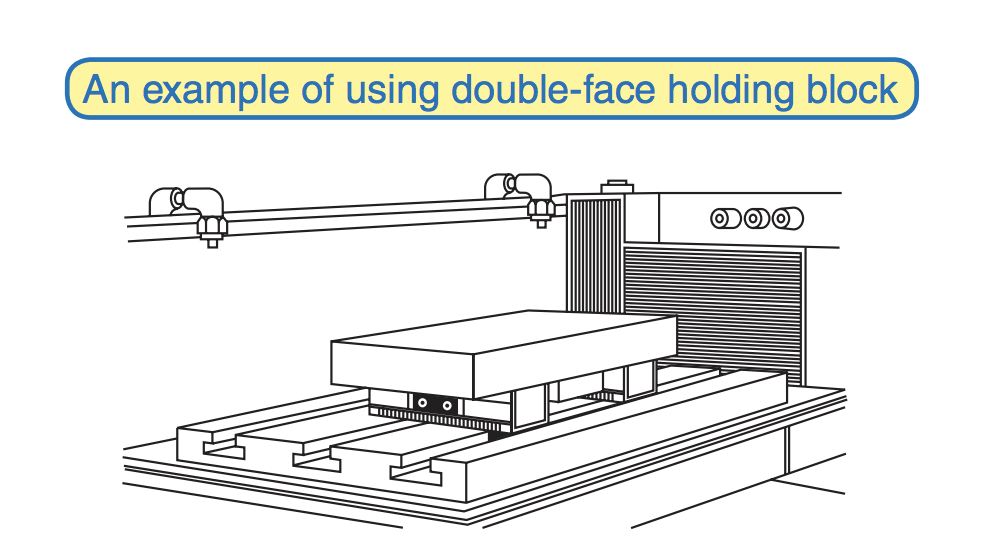

These blocks can hold workpieces during electric discharge machining and grinding. They can also be used as holding tools for assembly and light duty machining.
［Features］

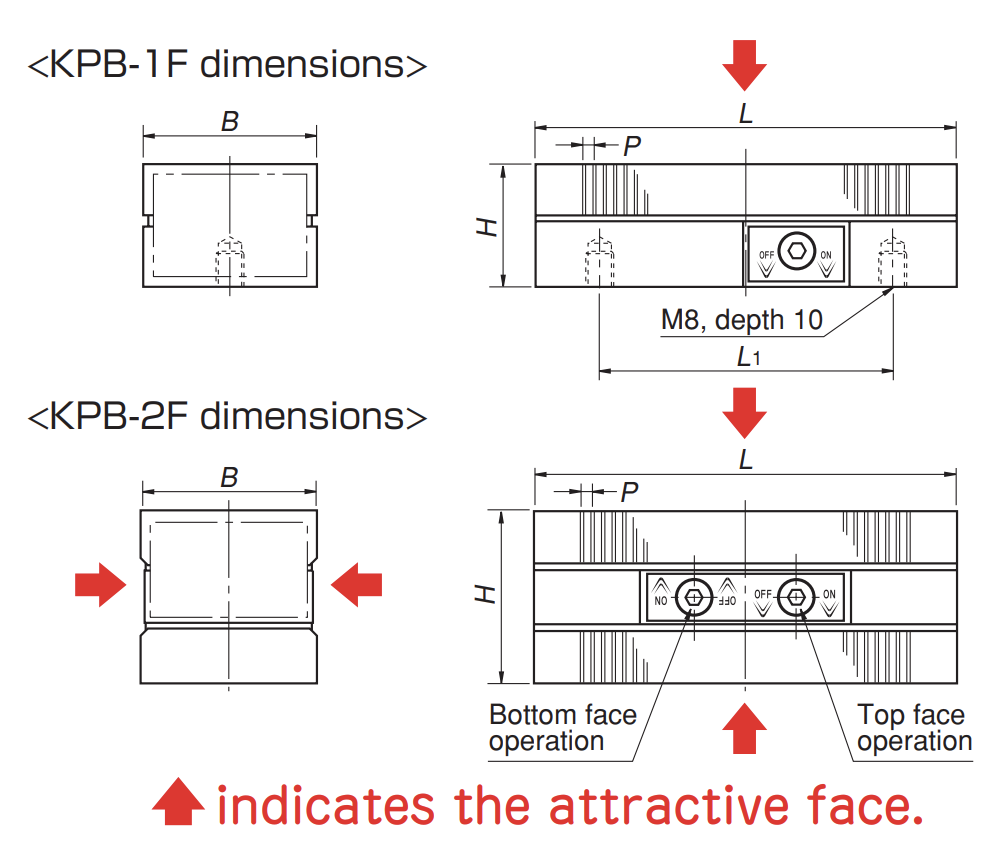

●The both sides can hold workpieces and can be turned on and off individually. (2F type)
●They are secured to the work table by turning on and off the magnet. (2F type)
●The side faces (ON/OFF switchover face) can also hold workpieces. (2F type)
●They are secured to the work table using tapped holes provided on the mounting face. They can also be secured by having them held by a magnetic chuck. (1F type)
●The operation part is provided on both side faces to facilitate on/off operation.
●Light weight for easy positional adjustment.
●The operating handle is detachable and does not hinder the work.
●One set of two blocks has been machined and finished together.
●They are of drip-proof and oil-resistant construction to allow them to be used in fluid.
