MB-PB 800N holding power MAGNETIC HOLDER BASE KANETEC
[Application]
Used as magnetic holders of magnetic force ON/OFF type. Available in a wide range of sizes from minimum and medium to large.
Useful as a base for temporarily mounted legs of equipment, sensors and lasers by mounting a jig using tapped holes or by some additional machining.
[Features]
Compact, yet the base generates a strong magnetic force.

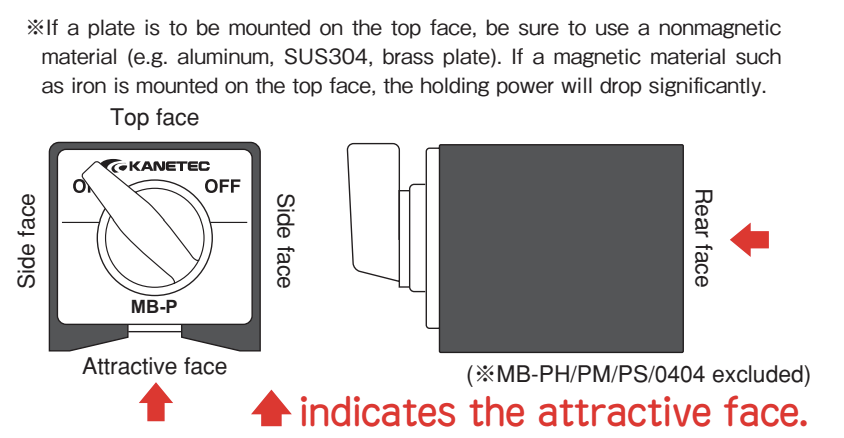

The attractive face is either of V-groove mechanism or [] type for attaching on a curved surface according to applications. The face opposite to the ON/OFF switch face is also attractive.(MB-PH, MB-PM, MB-PS and MB-0404 excluded)
Model MB-PRW is waterproofed and Model MB-0404 is drip-proofed and oil-

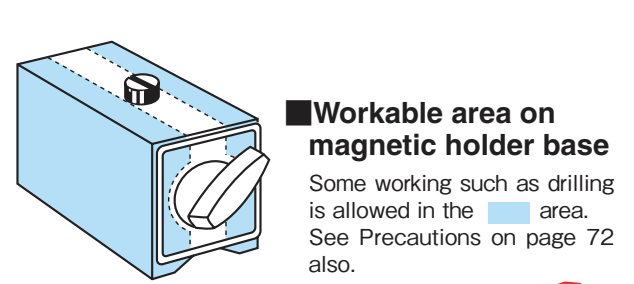

proofed. Although tapped holes are provided, some additional working is possible as shown.
