MAGNETIC BASE [Model MB]


[Application]

These magnetic bases are widely used as tool holders when measuring dimensions

of machined workpieces (detecting errors and deviation) using a dial indicater on

machine tools or iron surface plate for measurement by comparison.


[Features]

A wide variety of models, small to large, and with diversifhed additional functions, are

available to suit conditions of measuring places.

A powerful magnet and strong clamping force ensure consistent, highly accurate

measurement.

Renewal of design for name plate and individual box.

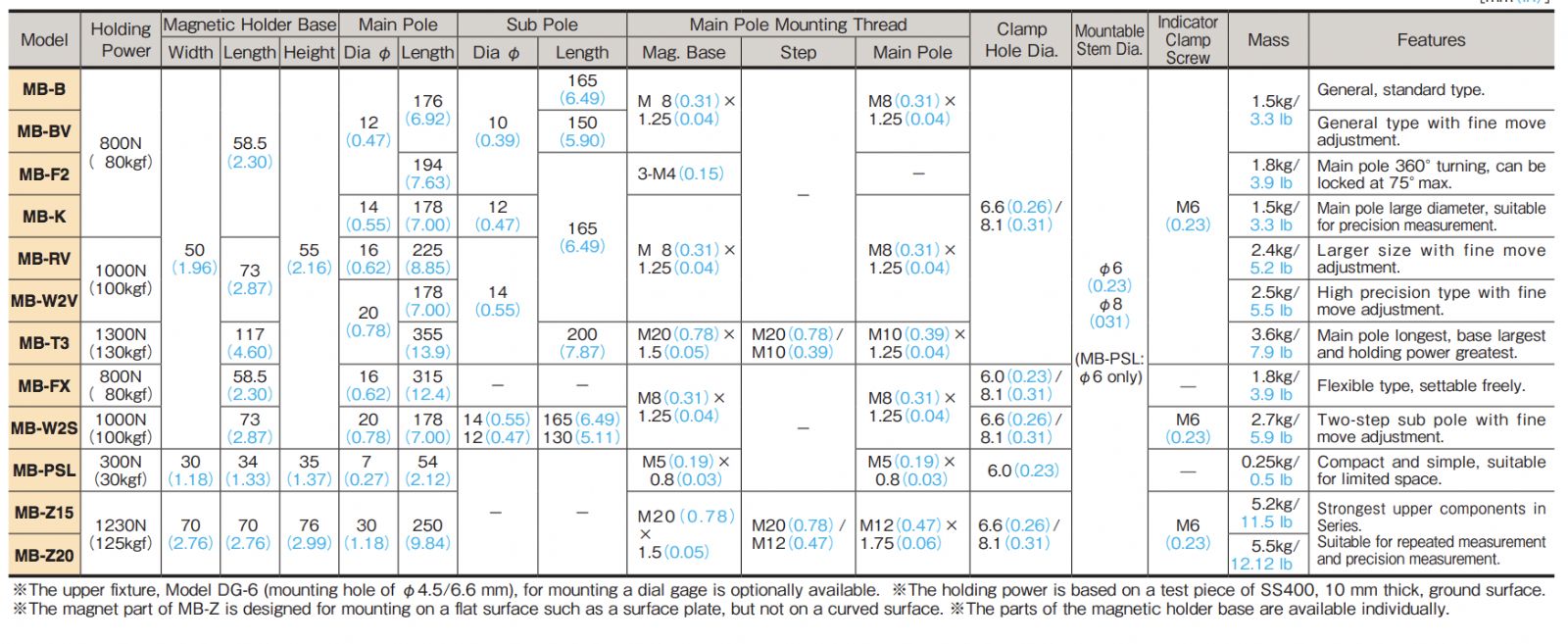

(Model:MB-B,BV,F2,K,T3,FX,RV,W2S,W2V)

Adoption of Lever made of metal.

(Model:MB-B,BV,F2,K,T3,FX,RV,W2S,W2V)

Change of clamp holes diameters for dial gauge on upper f1xture.(b4.5/6.4mm-

中6.4/8.1mm）

(Model:MB-B,BV,F2,K,W2S)

必MB-T3 has dedicated holder stand. Please kindly contact us for inquiry if you need

it.
