Product details：
TESLA METER[Model:TM-901 EXP]
Application
-
Residual magnetic measurement of machined workpieces,
demagenetized things and press-formed products.
-
Magnetic flux density control of sanitary magnets
-
Measurement of the characteristics or magnetic materials
-
Confirmation of magnetization level of magnetic materials
-
Magnetic flux density measurement of magnetic tools
-
Inspection and development of AC magnetic applied products, etc.
Features
-
Measurement range is 0-3000.0mT[0-30000G](DC).
-
"REAL" and "PEAK HOLD" values of magnetic flux density are displayed at the same time.
-
The new monitor comes with a light it can be tuned ON and OFF manually.
-
USB cable connection port for digital output is Type C.
-
"Detection Mode":The magnetic flux density measurements range can be set by user.
And it has a buzzing sound when in range.
*Buzzing sound is for DC only. AC is not supported.
-

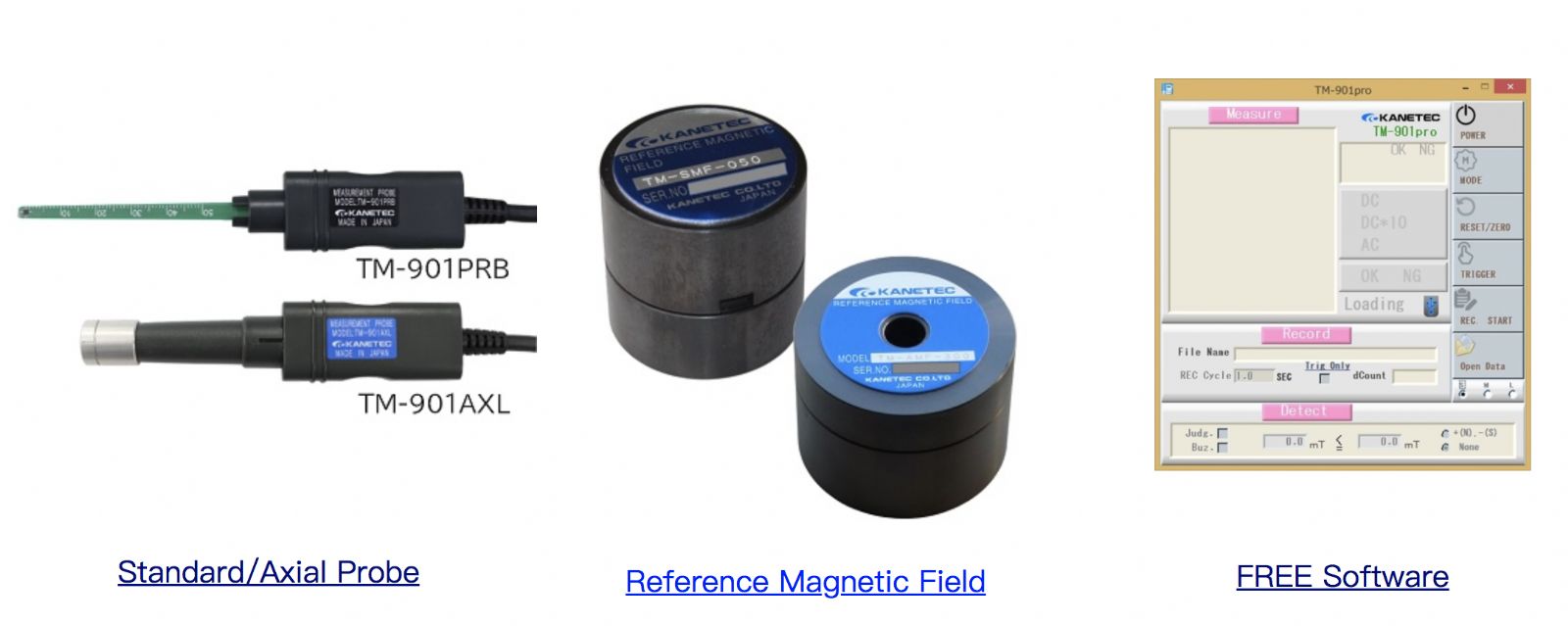

TM-901PRB and TM-901AXL can be used with conventional models
such as TM-501,TM-601,TM-701,TM-801.
|
Model |
TM-901 EXP |
|
Object to detect |
DC magnetic flux density AC magnetic flux density
Polarities (N,S) 40-500Hz |
|
Unit of measurement |
mT/G selection |
|
Measurement range |
0-3000.0mT |
|
|
Measjrement moede |
Measuring range |
Resolution |
Indication accuracy |
|
Measurement mode |
DC x 1 |
0-2000.0mT |
0.1 mT |
±(5% of rdg. + 3digit) |
|
Measuring range |
200.1-3000.0mT |
1 mT |
±(5% of rdg. + 10digit) |
|
Resolution |
DC x 10 |
0-3000.0mT |
0.01 mT |
±(3% of rdg. + 5digit) |
|
indication accuracy |
AC* |
0-150.0mT |
0.01 mT |
±(5% of rdg. + 20digit) |
|
|
150.1-300.0mT |
0.1 mT |
|
300.1-1500.0mT |
1 mT |
|
Function |
Zero reset |
Polarity judgment |
|
Max. detect value hold |
Auto power off(Cancellable) |
|
Output |
Digital output(USB)/Analog output |
|
Indication |
Detected value |
Digital |
|
Polarity |
Alohabets (N/S) |
|
Operation temperature |
0±40℃ (104°F) |
|
Power source |
.Battery:Size AA (1.5V)x4poeces |
|
.External power source 5-6 VDC (AC adapter/USB feed) |
|
Dimensions |
143(5.62in)mm high x64(2.51in)mm wide x30(1.41in)mm thick |
|
Mass |
Approx. 250g(0.62lb) (batteries Á probe included) |
|
Accessories |
Probe, batteries, carrying case |
|
Optional |
Axial probe (TM-801 AXL) |
|
Reference magnetic field (TM-SMF,TM-AMF) |
|
