XEBEC Stone™ Flexible Shaft

Ball type

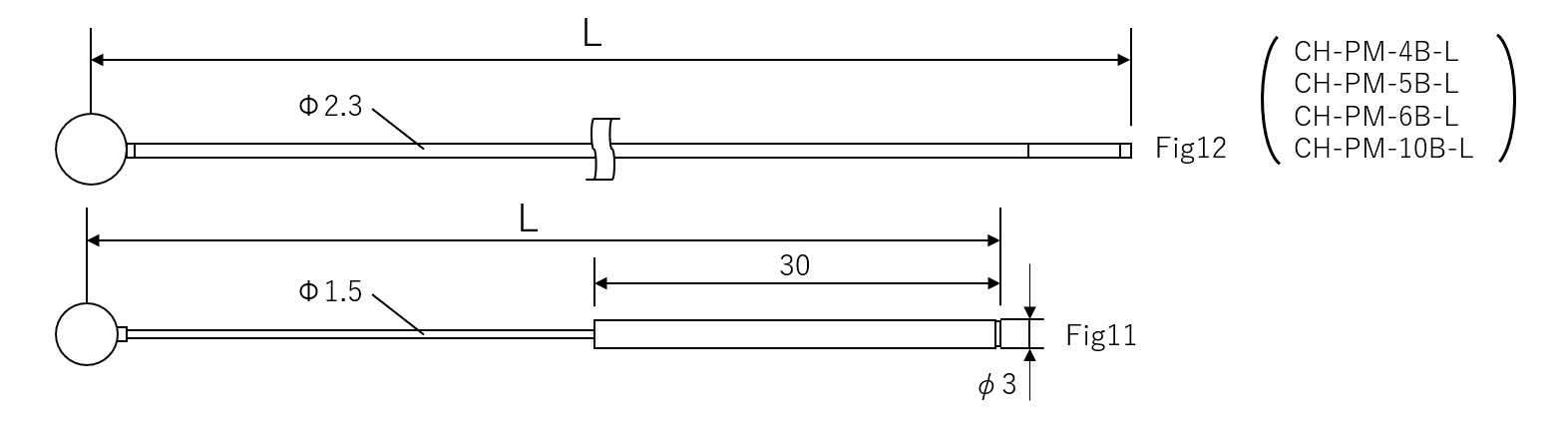

Equivalent grit (Color)		Product code	Head size (mm)	Shaft diameter (mm)	Shank diameter (mm)	Overall length L (mm)	Recommended rotational speed (min⁻¹)	Maximum rotational speed (min⁻¹)	Fig
	#800 (Blue)	CH-PB-3B	φ3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PB-4B	φ4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PB-5B	φ5	φ1.5	φ3	70	5000 – 8000	12000	11
		CH-PB-6B	φ6	φ1.5	φ3	70	5000 – 8000	10000	11
	#400 (Orange)	CH-PO-3B	φ3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PO-4B	φ4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PO-5B	φ5	φ1.5	φ3	70	5000 – 8000	12000	11
		CH-PO-6B	φ6	φ1.5	φ3	70	5000 – 8000	10000	11
	#220 (Gray)	CH-PM-3B	φ3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PM-4B	φ4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PM-5B	φ5	φ1.5	φ3	70	5000 – 8000	12000	11
		CH-PM-6B	φ6	φ1.5	φ3	70	5000 – 8000	10000	11
		CH-PM-10B	φ10	φ1.5	φ3	70	4000 – 5000	6000	11
		CH-PM-3B-L	φ3	φ1.5	φ3	150	–	1000	11
		CH-PM-4B-L	φ4	φ2.3	φ2.3	150	–	3000	12
		CH-PM-5B-L	φ5	φ2.3	φ2.3	150	–	3000	12
		CH-PM-6B-L	φ6	φ2.3	φ2.3	150	–	3000	12
		CH-PM-10B-L	φ10	φ2.3	φ2.3	150	–	2000	12

Cylinder type

Equivalent grit (Color)		Product code	Head size (mm)	Shaft diameter (mm)	Shank diameter (mm)	Overall length L (mm)	Recommended rotational speed (min⁻¹)	Maximum rotational speed (min⁻¹)	Fig
	#800 (Blue)	CH-PB-3R	φ3 x 3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PB-4R	φ4 x 4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PB-5R	φ5 x 5	φ1.5	φ3	70	5000 – 8000	12000	11
	#400 (Orange)	CH-PO-3R	φ3 x 3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PO-4R	φ4 x 4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PO-5R	φ5 x 5	φ1.5	φ3	70	5000 – 8000	12000	11
	#220 (Gray)	CH-PM-3R	φ3 x 3	φ1.5	φ3	70	5000 – 8000	15000	11
		CH-PM-4R	φ4 x 4	φ1.5	φ3	70	5000 – 8000	13000	11
		CH-PM-5R	φ5 x 5	φ1.5	φ3	70	5000 – 8000	12000	11
		CH-PM-5R-C01	φ5 x 10	φ1.5	φ3	70	5000 – 8000	12000	11

Disc type

Disc Type Stone

Equivalent grit (Color)		Product code	Disc size: Diameter x Thickness (mm)	Maximum rotational speed (min⁻¹)	fig
	#220 (Gray)	CH-PM-14D	φ14×2	5000	1

Shaft

Product code	Shaft diameter (mm)	Overall length L (mm)	Mounting screw	Maximum rotational speed (min⁻¹)	fig
CH-D-SH	φ2.3	78	M2×6	5000	2

A hex key for the mounting screw is included in the product package.
