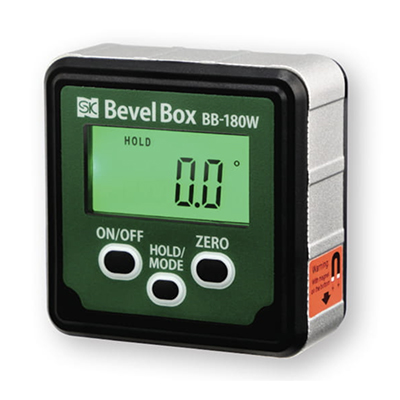

BEVEL BOX BB-180W
With Built-in Bluetooth for sending or recording measured value to PC or smart phone.
With functions of backlight ON/OFF setting, and auto power off ON/OFF
Built-in Bluetooth type for sending measured value
USE
A precision angle measuring instrument for installing machines,
molds and fixtures, for assembly and for setting reference standard
MATERIAL
( Body: ABS Base: Aluminum (with magnet on base)
FEATURES
Radio system: Bluetooth4.1 (communication distance within 10m)*
Zero setting at desired position
( With backlight for easy reading in a dark place (ON/ OFF switchable)
Display hold function
( Auto power off function (after approx. 5 min.) (ON/ OFF switchable)
POWER
●One AAA battery (Not included in the package)
※Certified with TELEC (JAPAN) and CE (EU). Can also be used in China and Vietnam.
|
Model no. |
Measuring range |
resolution |
Operation temperature |
Reading accuracy |
repeatability |
weight |
|
BB-180W |
±180° |
0.1° |
5~45℃ |
±0.2° |
0.1° |
75g |
