TPG-700AKDS TAPER GAUGE STOPPER/ TAPER GAUGE KAIDAN WITH STOPPER
Capable of retaining the measuring position of Taper gauge. Useful when reading scale in a hard-to-see environment.
USE

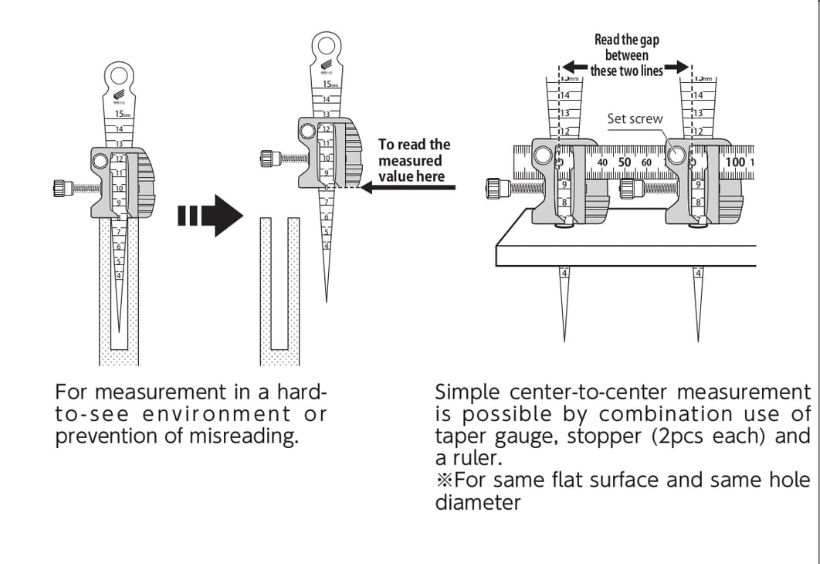

When measuring hole diameter or groove width with a taper gauge, the measured value is retained even in a measurement environment where it is difficult to check the measured value
For prevention of parallax by reading scale of taper gauge and end face position of taper gauge stopper
MATERIAL
ABS (body)
FEATURES
Retaining force of the taper gauge can be changed with the adjusting screw.
Simple center-to-center measurement is possible by combination use of taper gauge, stopper (2pcs each) and a 15cm ruler.
SPECIFICATIONS
Applicable taper gauge: Measuring range 1~15mm, Thickness 1.0・1.2mm (Standard #700 type)
Applicable ruler: Length 150mm, Width 15mm, Thickness 0.5mm (JIS straight metal ruler 150mm)
Taper gauge useable range: 1~14mm
When measuring center-to-center ...Applicable hole diameter: $2~14mm
...Center-to-center measuring range: 60~140mm
..Measurement accuracy: Approx.0.5mm
|
Model no. |
Configuration |
weight |
|
TGS-15 |
STOPPER |
16g |
|
TPG-700AKDS |
STOPPER + TAPER GAUGE KAIDAN TPG-700AKD (SET) |
26g |
