AP-130 ANGLE PROTRACTOR
New Product. Specialized for angle measurement. 3 measurement points enable multiple angle measurements
USE
Measuring angles for sheet metal bending, welding flanges and butt joints, openings and bevels, scissors plates, etc.
MATERIAL
Stainless steel (SUS410)
FEATURES
Enables a wide range of angle measurements before and after welding process Direct measurement can be done without interference from swelling or weld bead Can measure sheet metal bends and outside angle measurements
Non-reflective satin finish for easy to read scale
Solid and convenient carrying ( provided with plastic case)
SPECIFICATIONS

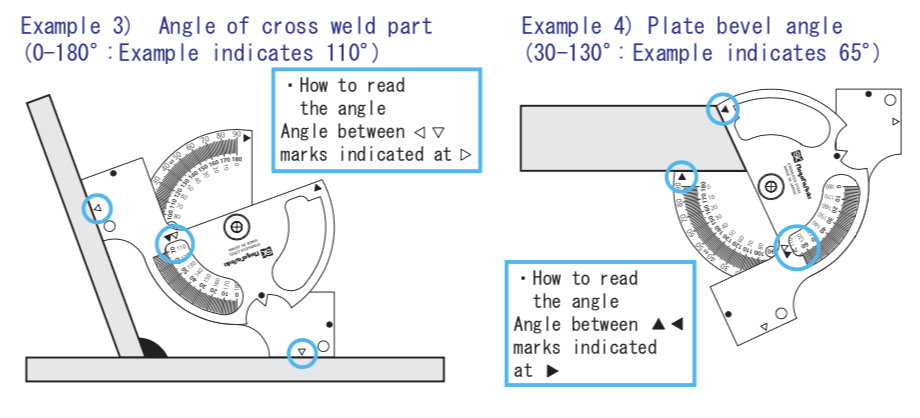

Bevel angle : Scissors angle 30-130 (Minimum graduation : 1°)
Bending angle and angle of butt weld joint :0~90°
Stud and beam angle after welding :0~180°
|
Model No. |
Accuracy of angle |
Weight |
|
AP-130 |
士0.5° |
100g |
