Product details：

AE1180

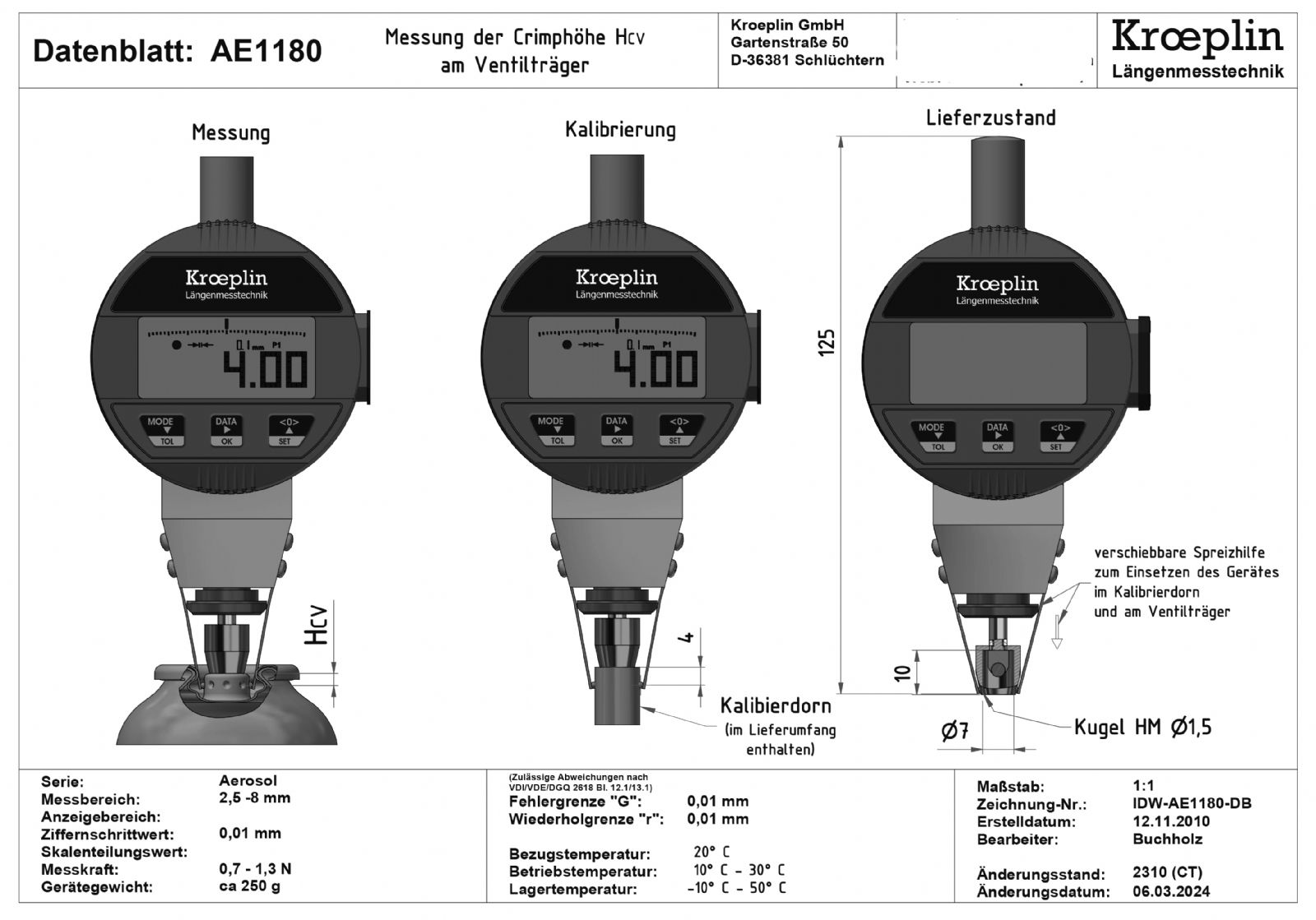

Measurement of the Crimp height at the valve
Measuring range Meb: 2,5 – 8 mm
Numerical interval Zw: 0,01 mm



Type	AE1180
Display mm / inch	inch, mm, mm + inch
Application	Aerosol devices
Measuring span Mes	5,5 mm
Measuring range Meb	2,5 – 8 mm
Range of indication Azb	Not available
Numerical interval Zw	0,01 mm
Max. permissible errors G	0,01 mm
Repeatability limit r	0,01 mm
Measuring force F min.	0,7 N
Measuring force F max.	3 N
Weight	250 g
Reference temperature	20 °C
Reference temperature	10 – 30 °C
Storage temperature	-10 – 50 °C
Inch-version	switchable
Power supply	1x CR2450 (order no. 0683-94)
Interface Bluetooth	order no. 1961-13
Interface Digimatic	order no. 1961-09 + 2482-07
Interface USB	order no. 1961-09 + 2482-05
Interface U-Wave®	order no. 1961-09 + 2482-04 + 2482-01 + 2482-02
Packaging	incl. plastic box (Art.-Nr. 1732-50 + AE1180-1)
