Product details：

A2130

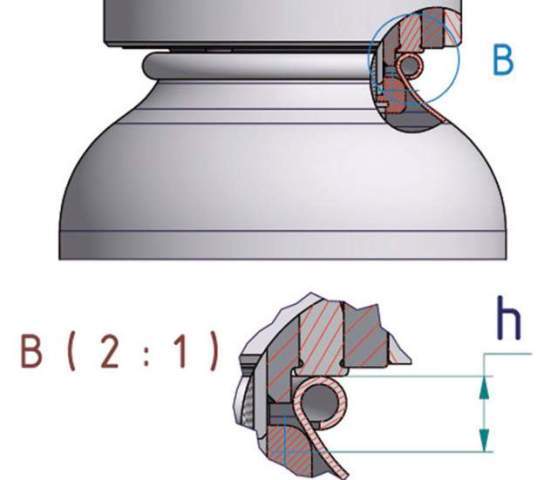

Measurement of contact height “h” in aluminum and steel cans, according to Standard EN 14847 and 15006
Measuring range Meb: 3,5 – 5,0 mm
Scale interval Skw: 0,01 mm



Type	A2130
Display mm / inch	mm
Application	Aerosol devices
Measuring span Mes	1,5 mm
Measuring range Meb	3,5 – 5,0 mm
Range of indication Azb	3,1 – 10,2 mm
Scale interval Skw	0,01 mm
Max. permissible errors G	0,02 mm
Repeatability limit r	0,02 mm
Measuring force F min.	3,5 N
Measuring force F max.	4,5 N
Weight	300 g
Reference temperature	20 °C
Reference temperature	10 – 30 °C
Storage temperature	-10 – 50 °C
Inch-version	A2130i
