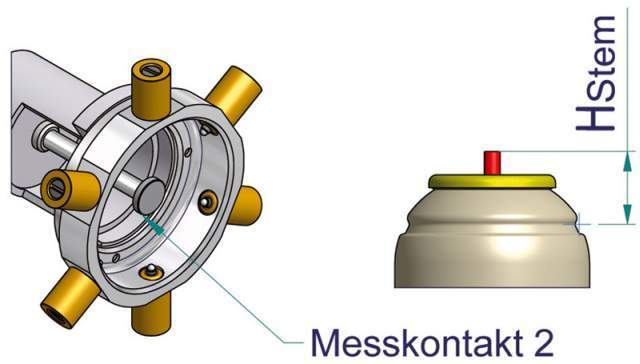

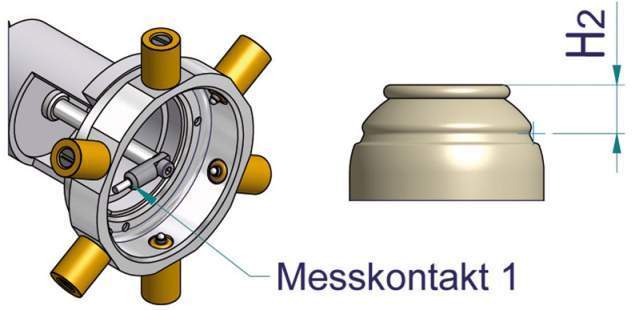

A1222 A1223 A1224 A1225 0-30mm Groove diameter: 42,5 mm; Height of the curl: 16 mm
Product details：
A1222
Groove diameter: 42,5 mm; Height of the curl: 16 mm
Measuring range Meb: 0 – 30 mm
Scale interval Skw: 0,01 mm
|
Type |
A1222 |
|
Display mm / inch |
mm |
|
Application |
Aerosol devices |
|
Measuring span Mes |
30 mm |
|
Measuring range Meb |
0 – 30 mm |
|
Range of indication Azb |
Not available |
|
Scale interval Skw |
0,01 mm |
|
Max. permissible errors G |
0,03 mm |
|
Repeatability limit r |
0,02 mm |
|
Measuring force F min. |
0,7 N |
|
Measuring force F max. |
3 N |
|
Weight |
380 g |
|
Reference temperature |
20 °C |
|
Reference temperature |
10 – 30 °C |
|
Storage temperature |
-10 – 50 °C |
|
Inch-version |
on demand |

|
