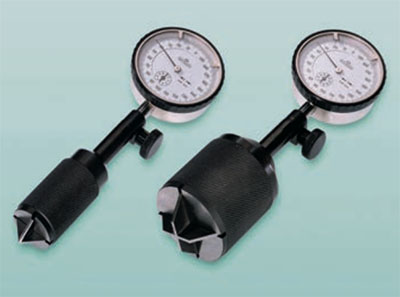

Internal Chamfer Gauge IFM
Product details：

Internal Chamfer Gauge IFM IFM

FOR DIRECT MEASURING THE MAJOR DIAMETER OF INTERNAL CHAMFERS AND TAPERS

Delivery with a special ratio dial gauge (reading 0,01 mm) for indication of measuring result. Holder with 90° or 127° taper. The gauge is preset.


INTERNAL CHAMFER GAUGE IFM

type

measuring range [mm]

Code

IFM 20/90°

0,5 - 20

194 00000

IFM 40/90°

20 - 40

194 00001

IFM 20/127°

0,5 - 20

194 00011

IFM 40/127°

20 - 40

194 00012

taper 60° on inquiry
