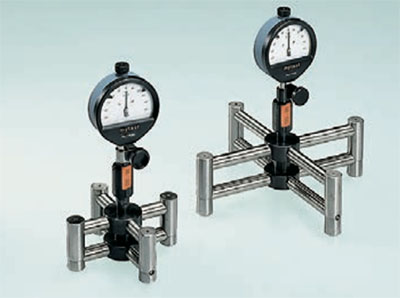

OD CROSS SLEEVE [WITH RUNNERS]
Product details：
Indicating Plug Gauge OD
OD CROSS SLEEVE [WITH RUNNERS]
|
nominal-Ø [mm] |
h [mm] |
cross sleeve with runners Code |
h [mm] |
cross sleeve with runners Code |
h [mm] |
cross sleeve Code |
|
130,1 - 150 |
7 |
311 00001 |
18 |
311 00000 |
6 |
311 00002 |
|
150,1 - 200 |
7 |
312 00001 |
18 |
312 00000 |
6 |
312 00002 |
|
200,1 - 250 |
7 |
313 00001 |
18 |
313 00000 |
6 |
313 00002 |
|
250,1 - 300 |
7 |
314 00001 |
18 |
314 00000 |
6 |
314 00002 |
|
300,1 - 350 |
10 |
315 00001 |
25 |
315 00000 |
9 |
315 00002 |
|
350,1 - 400 |
10 |
316 00001 |
25 |
316 00000 |
9 |
316 00002 |
|
400,1 - 450 |
10 |
317 00001 |
25 |
317 00000 |
9 |
317 00002 |
|
450,1 - 500 |
10 |
318 00001 |
25 |
318 00000 |
9 |
318 00002 |
|
