Indicating Plug Gauge OD - blind hole
Product details：

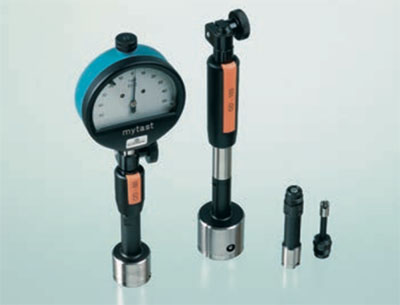

Indicating Plug Gauge OD
FOR MEASURING INTERNAL DIAMETERS, APPLICATION RANGE 2,0 - 800 MM
Assembly complete set:
Measuring sleeve with two radially movable contact pins, offset by 180° +
OD holder (see page 24) + indication unit of choice. Standard measuring range s: 0,2 mm for Ø > 6 mm. Standard design of the measuring sleeve: hardened steel, alternatively hard chromed, measuring contacts tungsten carbide.
Please let us know the exact bore tolerance with your order: Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01 measuring sleeve OD No. 304 00000 34,990/35,005
*nominalØ6,1-9mm:h=6mm;
nominalØ9,1-12mm:h=10mm
OD MEASURING SLEEVES - IN HARDENED STEEL DESIGN
|
盲孔 |
|
直径 |
h(mm) |
测头材质为钨钢 |
测头材质为硬质镀铬 |
测头材质为红宝石 |
|
2,0 - 2,5 |
0.7 |
300 00016 |
|
|
|
2,6 - 6,0 |
1 |
300 00001 |
|
300 00028 |
|
6,1 - 12,0 |
1 |
301 00001 |
301 00029 |
301 00030 |
|
12,1 - 20,0 |
1 |
302 00001 |
302 00021 |
302 00022 |
|
20,1 - 30,0 |
1.2 |
303 00001 |
303 00026 |
303 00027 |
|
30,1 - 40,0 |
1.2 |
304 00001 |
304 00033 |
304 00034 |
|
40,1 60,0 |
1.2 |
305 00001 |
305 00024 |
305 00025 |
|
60,1 - 80,0 |
1.2 |
306 00001 |
306 00026 |
306 00027 |
|
80,1 - 100,0 |
1.2 |
307 00001 |
307 00020 |
307 00021 |
|
100,1 - 110,0 |
1.2 |
308 00001 |
308 00027 |
308 00028 |
|
110,1 - 120,0 |
1.2 |
309 00011 |
309 00019 |
309 00020 |
|
120,1 - 130,0 |
1.2 |
310 00011 |
310 00019 |
310 00020 |
|
130,1 - 140,0 |
1.2 |
311 00501 |
311 00509 |
311 00510 |
|
140,1 - 150,0 |
1.2 |
312 00501 |
312 00509 |
312 00510 |
|
150,1 - 160,0 |
1.2 |
312 00501 |
313 00509 |
313 00510 |
|
160,1 - 170,0 |
1.2 |
314 00501 |
314 00509 |
314 00510 |
|
170,1 - 180,0 |
1.2 |
315 00501 |
315 00509 |
315 00510 |
|
180,1 - 190,0 |
1.2 |
316 00501 |
316 00509 |
316 00510 |
|
190,1 - 200,0 |
1.2 |
317 00501 |
317 00509 |
317 00510 |
|
