UNIVERSAL CONCENTRICITY GAGING SYSTEM B-10 B-20 B-40
B-10 Model
Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Gage Length: 10.5” (267mm)
Gage Width: 4.5” (114mm)
Shipping Weight: 4.9lb. (2.2kg.) 3/32” (1mm)

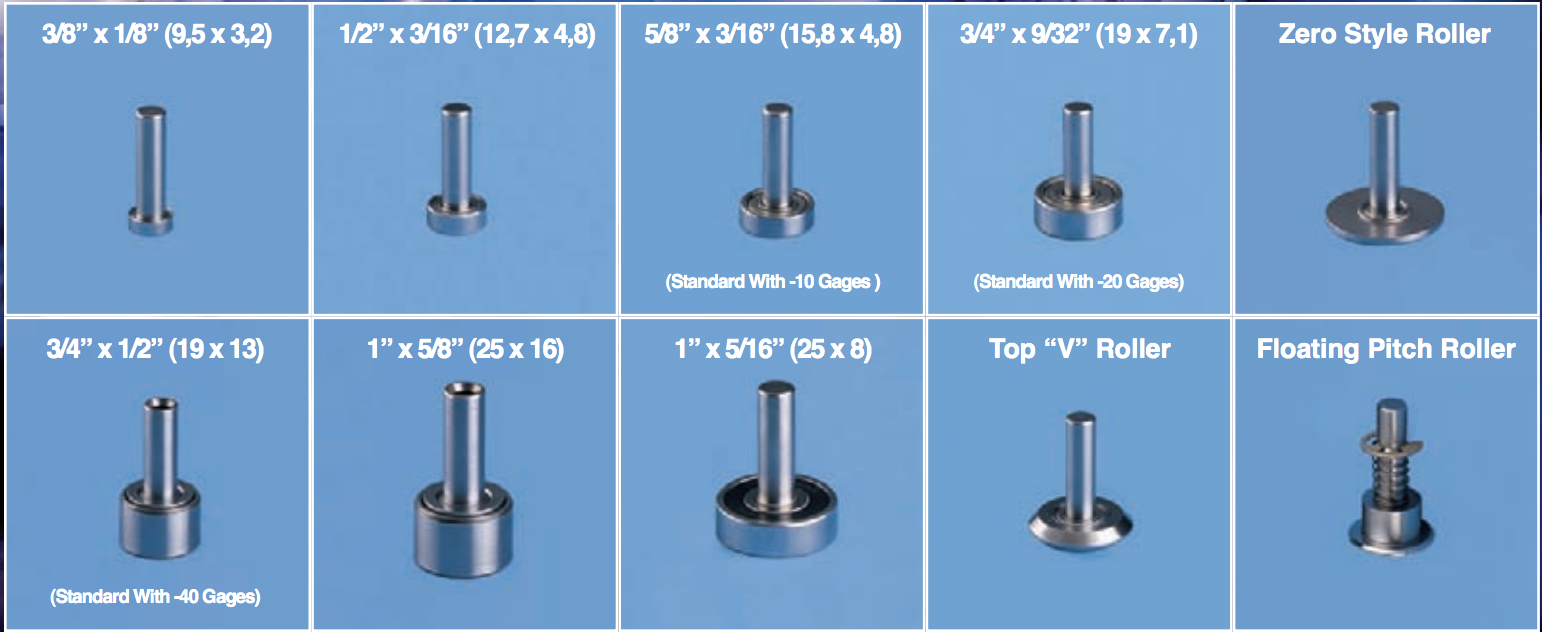

Capacity with Zero Style Rollers
B-20 Model
Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Gage Length: 12.5” (318mm)
Gage Width: 4.5” (114mm)
Shipping Weight: 6.4lb. (2.9kg.)
B-40 Model
Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Gage Length: 14.5” (368mm)
Gage Width: 6” (152mm)
Shipping Weight: 11.2lb. (5.1kg.)
