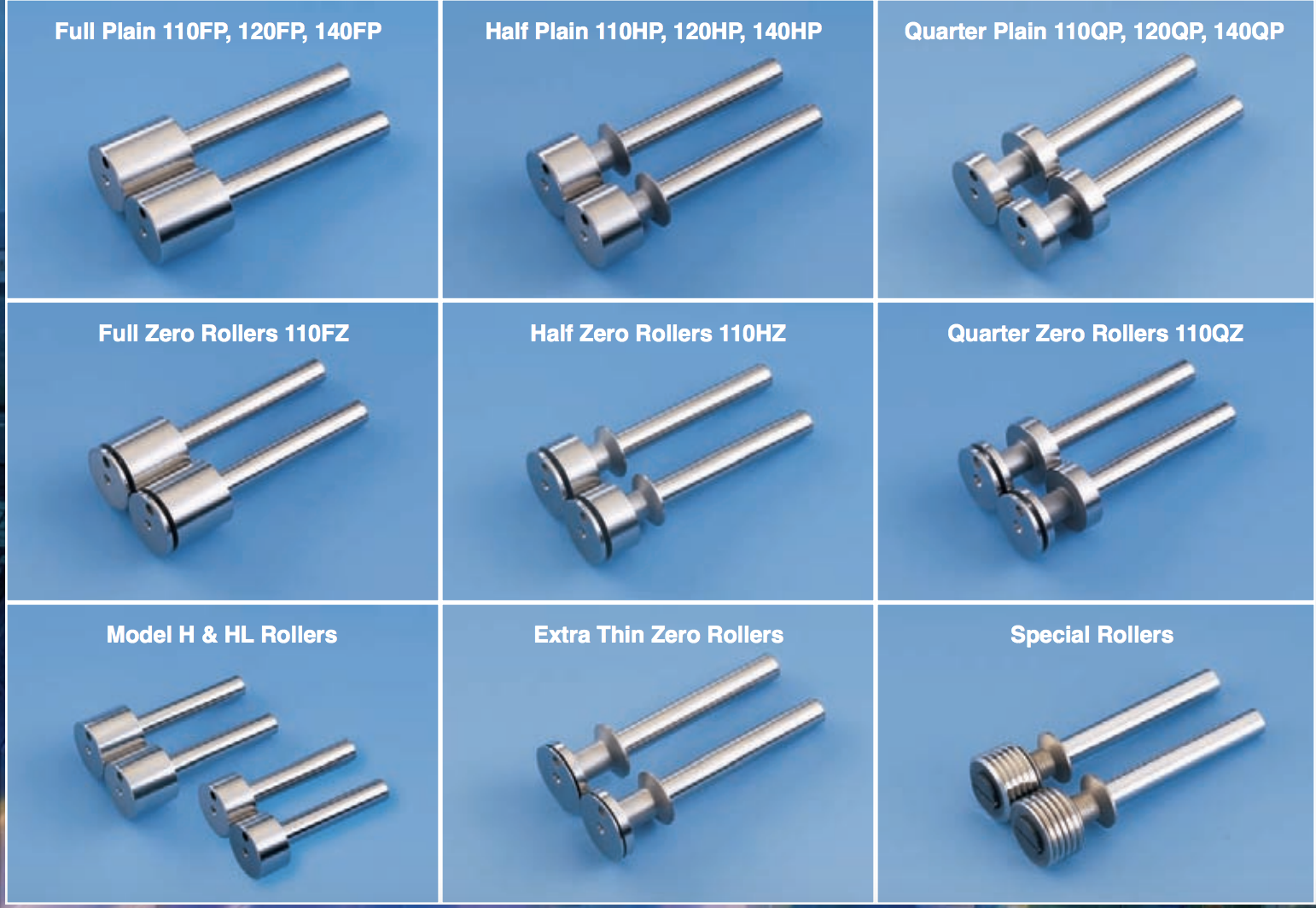

Standard Gaging Features

Accurate and reliable measurements are a key factor in today's competitive manufacturing environment. Universal's patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality.

This gage system utilizes four simple features:

1) Adjustable multi-position top arm yoke assembly offers a vari- ety of clamping pressures and positions to accommodate a range of part diameter sizes.

2) All Standard Indicator Carriers have fine adjustment screws that provide accurate indicator probe positioning, zeroing and provide smooth indicator movement to increase measuring per formance and accuracy,

3) All gages come standard with a manual Drive Timing Belt Pulleys System that provides a constant smooth part rota- tion when inspecting. (Optional) 110/220 volts AC/DC fixed speed or variable speed motorized drive systems are ava- iable.

4) All carriers offer a variety of positions that move along the -Z- axis of the carrier rod assembly. The carrier tilts 90 degrees to fa- cilitate easy loading and unloading of parts.



A-10 Model

Part Diameters: 1/8” to 1” (3mm to 25mm)

Part Lengths: Up to 3” (76mm)

Gage Length: 8.5” (216mm)

Gage Width: 4.5” (114mm)

Shipping Weight: 4.5lb. (2.0kg.)
